Запчасти Case 21D (91.020[2990055000]) - DECAL KIT (EUROPE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

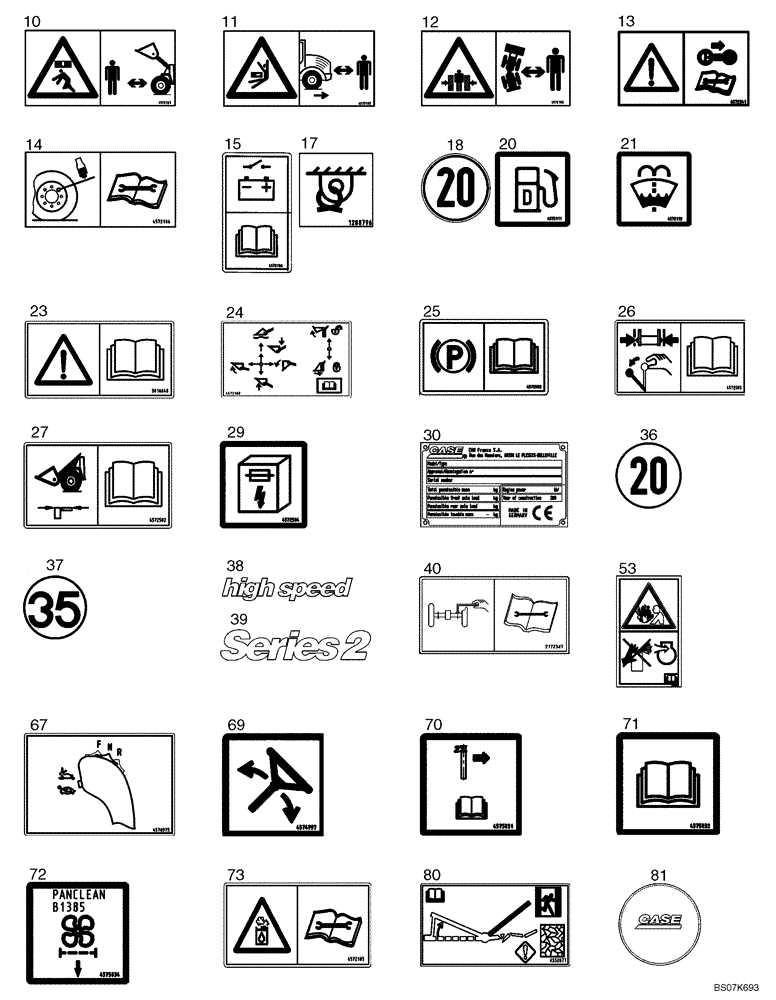

Схема запчастей Case 21D - (91.020[2990055000]) - DECAL KIT (EUROPE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
72
23
71
10
20
18
40
12
17
11
69
24
80
36
37
39
53
26
30
29
13
27
25
67
38
14
81
21
73
15
70

Артикул

Название

Примечание

Количество

10

4572101

DANGER DECAL

Warning in Front

2шт.

11

4572102

IDEOGRAM

Warning in Rear

1шт.

12

4572103

IDEOGRAM

Warning on Trun

2шт.

13

4572341

IDEOGRAM

Engine Stop

1шт.

14

4572104

DECAL

Wheel Attaching Nut

1шт.

15

4572106

DECAL

Battery Main Switch

1шт.

17

1288796

DECAL

Fasting Point

4шт.

18

1247048

DECAL

20 KM

3шт.

20

4572111

DECAL

Fuel

1шт.

21

4572112

DECAL

Windshield Washing Water

1шт.

23

3016648

IDEOGRAM

Instruction Manual

1шт.

24

4572108

DECAL

Instruction lift, sink, ankippen, open

1шт.

25

4572503

IDEOGRAM

Hand Brake

1шт.

26

4572505

IDEOGRAM

Pin Quick Change

1шт.

27

4572502

DECAL

Carrier Position Shovel

1шт.

29

4572504

IDEOGRAM

Security Box

1шт.

ns

4577544

IDENTITY PLATE

Case

1шт.

31

72761

RIVET

4шт.

32

4552937

DECAL

Acoustic Measurement

1шт.

36

4574853

DECAL

20 KM/H (Round)

1шт.

37

4577700

DECAL

35 KM/H (Round)

1шт.

38

4577714

DECAL

High Speed

1шт.

39

4552911

DECAL

Decal Series 2

2шт.

40

2772347

IDEOGRAM

Axle Mount Nut

1шт.

53

8603095

WARNING DECAL

Warning Ether

1шт.

67

4576974

DECAL

Joystick Instruction

1шт.

69

4574997

IDEOGRAM

Adjust Steering Column

1шт.

70

4575031

IDEOGRAM

Towing Pin

1шт.

71

4575032

IDEOGRAM

Handbook

1шт.

72

4575034

IDEOGRAM

Fresh Air Filter

1шт.

73

4572105

DECAL

Hyd. Tank Ventilate

1шт.

80

4552877

PLATE

Warning Broken Glass

1шт.

81

4552876

PLATE

Plate Case 50mm Series 2

1шт.

Выбрано товаров: 33
