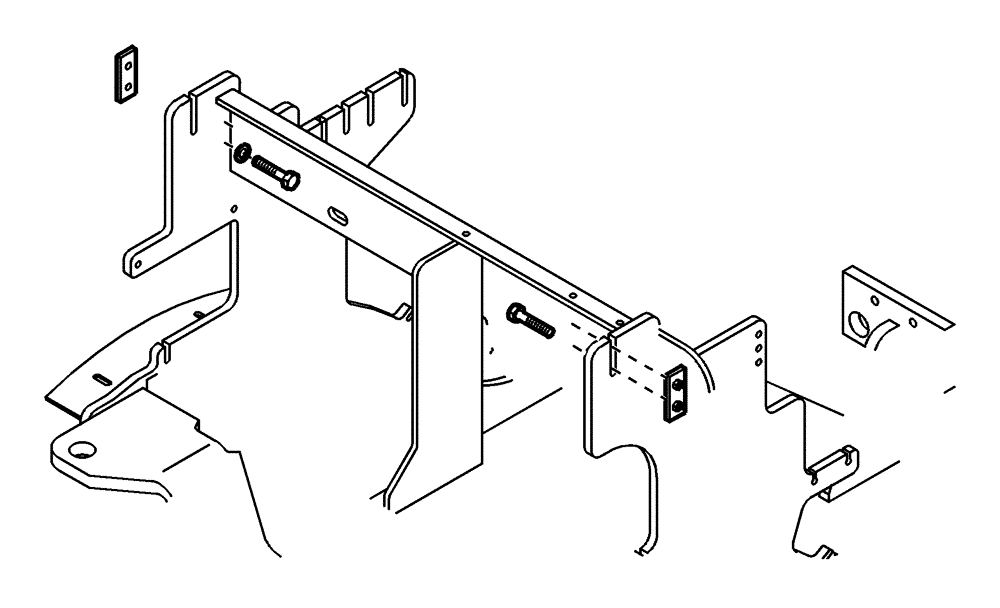

Запчасти Case 21D (36.020[2988606000]) - ENGINE HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

2772557

ENGINE HOOD

See Fig 36.022

1шт.

5

6498044

GAS STRUT

1шт.

10

2929669

PLATE

2шт.

15

55098

BOLT,Hex, M10 x 40mm, Cl 8.8

Replaces 120112

4шт.

20

2975165

WASHER

M8

1шт.

21

2977453

WASHER

4шт.

25

68841

NUT,M8 x 1.25, Cl 8

Replaces 832-10408

1шт.
