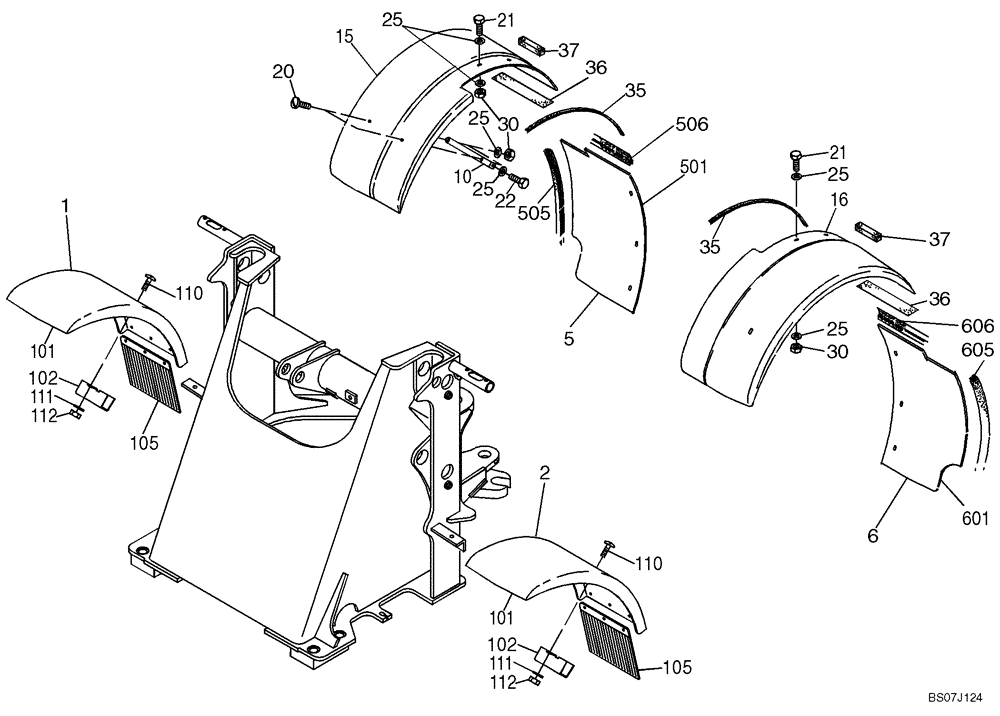

Запчасти Case 21D (01.680[2988518001]) - WHEEL COVER INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

4552871

FRONT FENDER

Assy, RH, Incl. 101 - 112

1шт.

2

4552872

FRONT FENDER

Assy, LH, Incl. 101 - 112

1шт.

5

2772681

FENDER EXTENSION

Incl. 501 - 506

1шт.

6

2772682

FENDER EXTENSION

Incl. 601 - 606

1шт.

10

4552189

RETAINER

1шт.

15

2772679

REAR FENDER

RH

1шт.

16

423764A1

REAR FENDER

LH

1шт.

20

2929702

HEX SOC SCREW,M8 x 20mm L

M8 x 20, 10.9

2шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

18шт.

22

2975214

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

25

62543

WASHER

Replaces 420222A1

40шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

21шт.

35

72184758

SEALING STRIP

0.57 Meter, Replaces 422724A1

1шт.

36

72184758

SEALING STRIP

0.25 Meter, Replaces 422724A1

1шт.

37

4150664

SEAL

0.15 Meter, Replaces 420766A1

1шт.

101

4552873

FRONT FENDER

RH

1шт.

102

2813997

SUPPORT

4 x 757 x 235 mm

1шт.

105

1758982

FRONT FENDER

Replaces 423731A1

1шт.

110

3124107

SCREW

6шт.

111

62543

WASHER

Replaces 420222A1

6шт.

112

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

201

4552873

FRONT FENDER

1шт.

202

2813997

SUPPORT

4 x 757 x 235 mm

1шт.

205

1758982

FRONT FENDER

Replaces 423731A1

1шт.

210

3124107

SCREW

6шт.

211

62543

WASHER

Replaces 420222A1

6шт.

212

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

501

2772683

FENDER EXTENSION

1шт.

505

422733A1

GUARD

Sectional Rubber, 0.73 Meter

1шт.

506

3013364

SEAL

0.31 Meter, Replaces 423769A1

1шт.

601

2772684

FENDER EXTENSION

1шт.

605

422733A1

GUARD

Sectional Rubber, 0.73 Meter

1шт.

606

3013364

SEAL

0.31 Meter, Replaces 423769A1

1шт.
