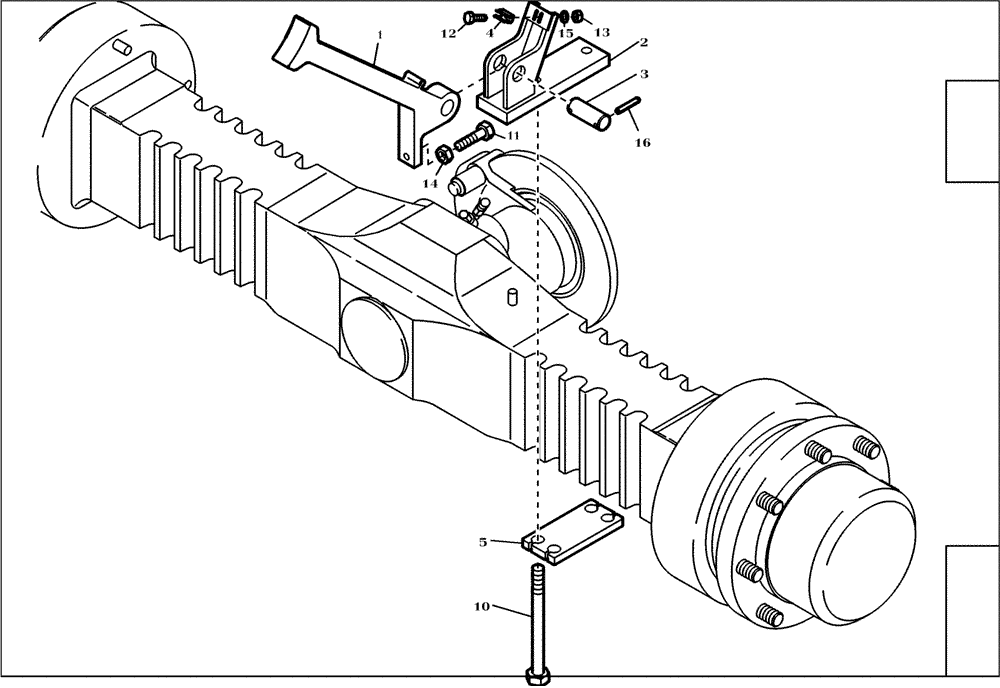

Запчасти Case 21D (76.060[2988160000]) - LIFT ARM (82) - FRONT LOADER & BUCKET

1

2772607

LEVER

1шт.

2

4552168

SUPPORT

1шт.

3

4576983

PIN

30H 11 x 79

1шт.

4

4142648

SPRING

Replaces 421547A1

1шт.

5

2813834

PLATE

1шт.

10

2168314

BOLT,Hex, M20 x 2.5 x 200mm, Cl 8.8, Full Thd

2шт.

11

86639031

BOLT,Hex, M12 x 45mm, Cl 10.9, Full Thd

Replaces 627-12045

1шт.

12

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

Replaces 614-5016

2шт.

13

87016571

NUT,M5, Cl 5

Replaces 824-1405

2шт.

14

9706685

NUT,M12 x 1.75, Cl 8

Replaces 825-1412

1шт.

15

2975166

WASHER

2шт.

16

13820

LOCK PIN,M6 x 50, Slotted

Replaces 421546A1

2шт.
