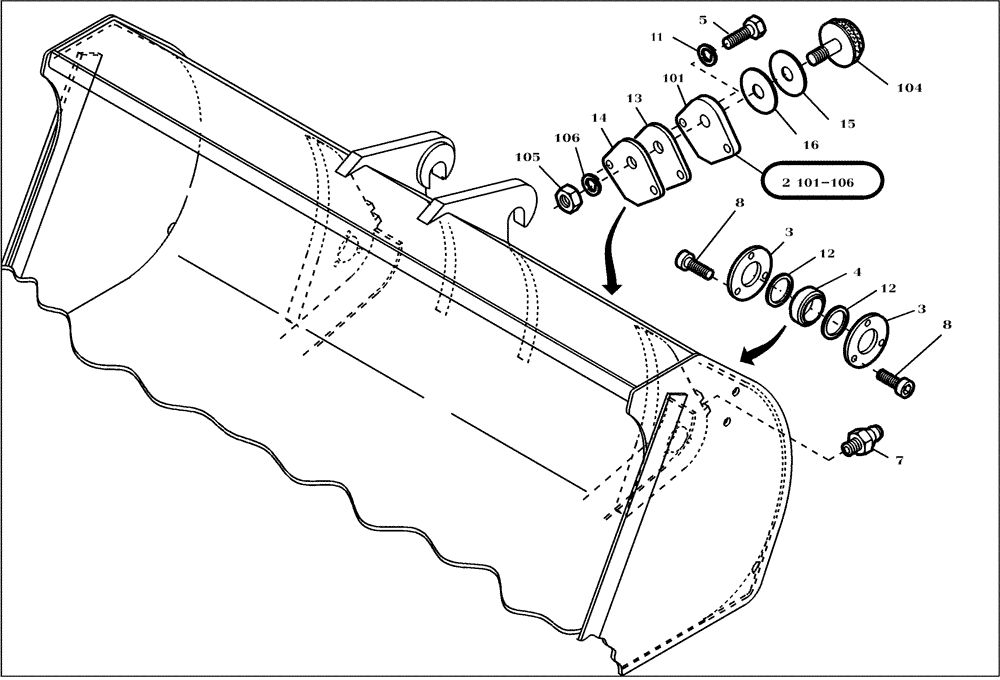

Запчасти Case 21D (64.213[2988988000]) - LOADING BUCKET ASSEMBLY PARTS (82) - FRONT LOADER & BUCKET

2

2164848

STOP

Limit, Replaces 421312A1

2шт.

3

2438607

COVER

Replaces 421313A1

4шт.

4

2977586

SPHERICAL BEARING

Joint

2шт.

5

63314

BOLT,Hex, M12 x 35mm, Cl 8.8

Replaces 614-12035

4шт.

7

8412011

LUBE NIPPLE

Replaces 420268A1

2шт.

8

2186417

SCREW

M8 x 16-8.8, Replaces 421314A1

12шт.

11

2976540

LOCK WASHER

4шт.

12

2438608

WASHER

Replaces 421317A1

4шт.

13

2438384

PLATE

136 x 150mm, Replaces 421318A1

2шт.

14

2438385

PLATE

136 x 150mm, Replaces 421319A1

2шт.

15

2212786

WASHER,17mm ID x 86mm OD x 2mm Thk

Replaces 420231A1

2шт.

16

2212787

WASHER

Replaces 421320A1

2шт.

101

2164847

STOP

Replaces 423943A1

1шт.

104

1770538

BUMPER

Replaces 420260A1

1шт.

105

100020

NUT,M16 x 2.0, Cl 8

1шт.

106

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.
