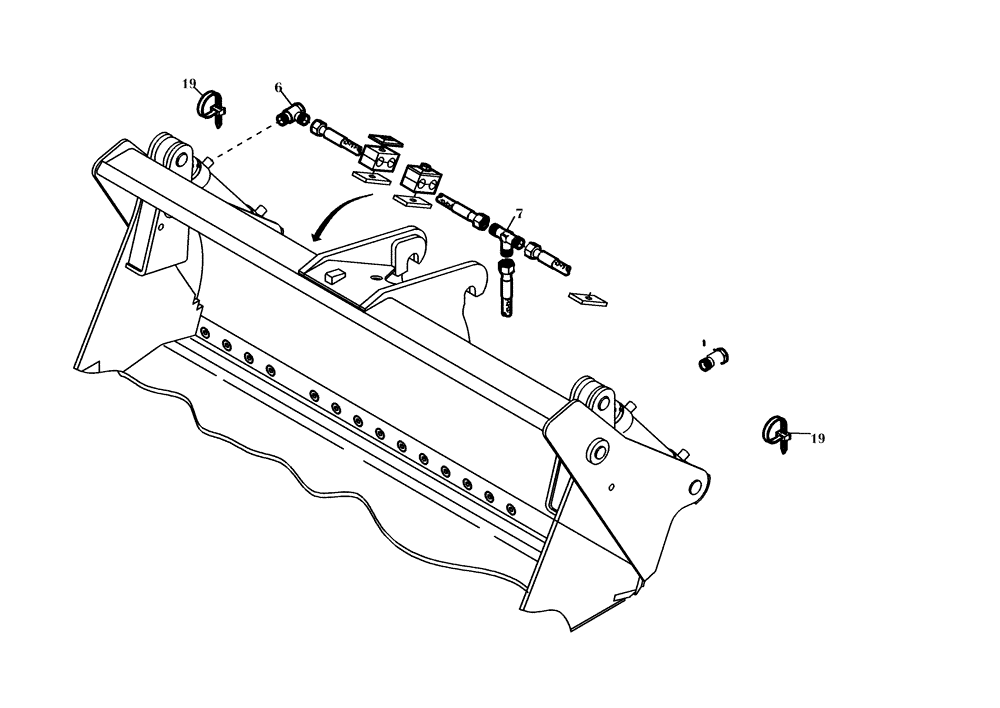

Запчасти Case 21D (64.040[2796866001]) - HYDRAULIC SYSTEM CLAMSHELL (82) - FRONT LOADER & BUCKET

1

971587

CLAMP

Replaces 421506A1

2шт.

2

2900345

CLAMP

Replaces 421507A1

2шт.

3

2268379

HYDRAULIC HOSE

8 x 1353mm, Replaces 421508A1

1шт.

4

2186905

HYDRAULIC HOSE

8 x 1100mm, Rplaces 421509A1

1шт.

6

2186722

ELBOW

Replaces 421510A1

4шт.

7

8411290

TEE

Replaces 421511A1

2шт.

8

2268394

PUSH-PULL COUPLING

Replaces 421513A1

1шт.

9

2268323

DUST CAP

Replaces 421290A1

1шт.

10

2479066

HYDRAULIC HOSE,900.00 mm

Replaces 421514A1

1шт.

11

900529

PLATE

Replaces 420900A1

2шт.

12

55085

BOLT,Hex, M8 x 45mm, Cl 8.8

Replaces 814-8045

2шт.

13

773187

PLATE

Replaces 420751A1

2шт.

14

55081

BOLT,Hex, M8 x 35mm, Cl 8.8

Replaces 814-8035

2шт.

15

1289404

HYDRAULIC HOSE

8 x 1500mm, Replaces 421515A1

1шт.

16

2268382

HYDRAULIC HOSE

8 x 650mm, Replaces 421516A1

2шт.

17

2268395

PUSH-PULL COUPLING

Replaces 421517A1

1шт.

18

2268324

COUPLING

Replaces 421289A1

1шт.

19

726789

CABLE TIE,M4.8 x 188

CABLE STRAP Replaces L11541

2шт.
