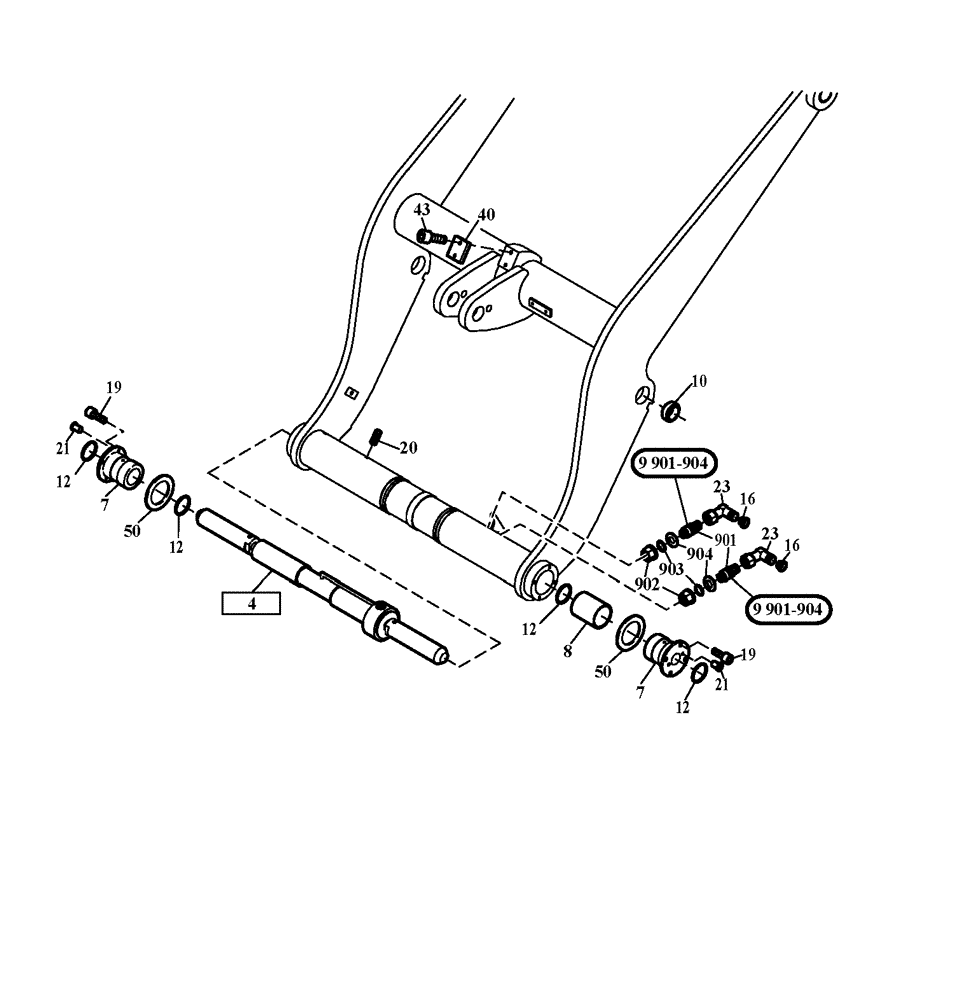

Запчасти Case 21D (60.502[2990505000]) - LOADER ARM (82) - FRONT LOADER & BUCKET

4

4531367

HYDRAULIC CYLINDER,Double Acting, 22mm Rod, 70mm Stroke

Quick-Hitch See Fig 24.320 (Section 35)

1шт.

7

2438155

HUB

Replaces 420878A1

2шт.

8

2438152

SLEEVE

Replaces 420879A1

1шт.

9

4550945

HYD CONNECTOR

Tube Fitting, Replaces 424161A1

2шт.

10

2977586

SPHERICAL BEARING

2шт.

12

1037027

O-RING,40mm ID x 5mm Width

Replaces 420885A1

4шт.

16

58057

PLUG

Replaces 420888A1

2шт.

19

2979617

SCREW

Cyl. Head M8 x 20-8.8

8шт.

20

726138

SET SCREW

M8 x 40-45, Replaces 420891A1

3шт.

21

2975111

PLUG

4шт.

23

1636005

ELBOW

Replaces 420894A1

2шт.

40

2438216

PLATE

Replaces 420895A1

1шт.

43

939137

SCREW,Hex Soc Hd, M10 x 30, 8.8

Cyl. Head, Replaces 864-10030

2шт.

50

2164849

WASHER

2шт.

901

4550941

HYD CONNECTOR

Replaces 423944A1

1шт.

902

4550943

NUT

Replaces 423945A1

1шт.

903

1413997

SEALING RING

SEALRING Replaces 423448A1

1шт.

904

2212052

SEALING RING

SEALRING Replaces 420887A1

1шт.
