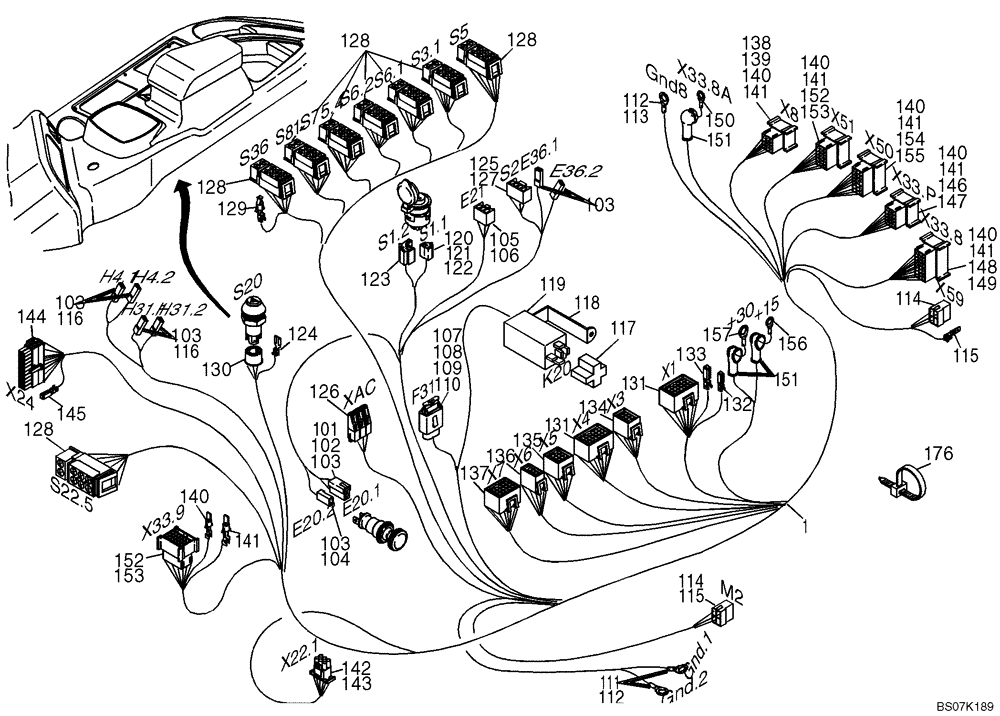

Запчасти Case 21D (32.510[2989997001]) - CABLE HARNESS OPERATORS CAB (55) - ELECTRICAL SYSTEMS

1

3004952

WIRE HARNESS

Incl. 101-176

1шт.

101

2978292

CONTACT HOUSING,2 Pole

RECEPTACLE HOUSING 2POL WS 926474-1 AMP

1шт.

102

971102

CABLE TERMINAL

PLUG-IN SLEEVE EN 46247-6,3X4

1шт.

103

2978339

TERMINAL

PLUG-IN SLEEVE 46247-6,3X2,5-MS

12шт.

104

4160261

TERMINAL

ISOLATIG SLEEVE , Replaces 421053A1

3шт.

105

2930070

CONTACT HOUSING,3 Pin

BUSH HOUSING 125761 CIAM

1шт.

106

2930056

CONTACT HOUSING

BUSHING CONTACT 0,8-2,6 282308-1 AMP

2шт.

107

2929254

CONTACT HOUSING

178.6115.000 PUD

1шт.

108

2929255

CONTACT HOUSING

178.6125.000 PUD

1шт.

109

2930058

WIRE CONNECTOR,4 - 6 mm2

4-6 178.6116.600 PUD

2шт.

110

2900019

FUSE

30A, Replaces 421082A1

1шт.

111

970118

CABLE TERMINAL

46234-8-10 , Replaces 421065A1

2шт.

112

2975776

GROMMET

600 25250 HN

3шт.

113

1709720

CABLE TERMINAL

46234-8-6 , Replaces 422492A1

1шт.

114

34788

HOUSING

4POL WS 180900 AMP

2шт.

115

1186525

SOCKET/RECEPTACLE

FOR TAB 124573 WOELF

10шт.

116

4160261

TERMINAL

ISOLATIG SLEEVE , Replaces 421053A1

4шт.

117

2930076

SOCKET

MODULAR C-281856 AMP

1шт.

118

1495219

PLATE

BRACKET 1C020349 CIAM , Replaces 421162A1

1шт.

119

2930083

RELAY

157104 CIAM

1шт.

120

8466768

HOUSING

1шт.

121

424236A1

POWER SOCKET,Female, 3 - 6 mm2

IN SLEEVE 9,5 +++

3шт.

122

2930057

TERMINAL,1 - 2.5 mm2

PLUG-IN SLEEVE 9,5 1,0-2,5 962835-1 AMP

1шт.

123

8466769

HOUSING

1шт.

124

215021

TERMINAL CONNECTOR,Female, 1 - 2.5 mm2

PLUG-IN SLEEVE 6,3 1,0-2,5 160447-1 AMP, Replaces 421084A1

10шт.

125

2930069

CONTACT HOUSING

BUSH HOUSING 124209 CIAM

1шт.

126

2930055

POWER SOCKET

CONTACT C-282036 AMP

1шт.

127

2930054

CONTACT HOUSING,0.5 - 1.5 mm2

BUSHING 0,5-1,5 281881-1 AMP

4шт.

128

2186736

COVER

HOUSINGSE F. TKS 593.757 SWF

8шт.

129

2479372

CONTACT

STANDARD-TIMER 1,5-2,5 927834-2 AMP

42шт.

130

264473

SOCKET

TO THE PUSH BUTTON SWITCH , Replaces 421168A1

1шт.

131

2929774

MULTIPOLE CONNECTOR,21 Pole

BUSH MCP 21-POL. 8-968975-1 AMP

2шт.

132

2929772

CONTACT HOUSING

SLEEVE 0,5-1,0 1-968849-1 AMP

37шт.

133

2929773

CONTACT HOUSING

SLEEVE 1,0-2,5 1-968851-1 AMP

29шт.

134

2929778

MULTIPOLE CONNECTOR,9 Pole

BUSH MCP 9-POL. 8-968971-1 AMP

1шт.

135

2929777

MULTIPOLE CONNECTOR,12 Pole

BUSH MCP 12-POL. 8-968972-1 AMP

1шт.

136

2930052

CONTACT HOUSING,6 Pole

BUSH HOUSING MCP 6-POL. 8-968970-1 AM

1шт.

137

2929775

MULTIPOLE CONNECTOR,18 Pole

BUSH MCP 18-POL. 8-968974-1 AMP

1шт.

138

2929788

MULTIPOLE CONNECTOR,9 Pole

PIN MCP 9-POL. 1-967626-1 AMP

2шт.

139

2929787

LOCKING DEVICE

MCP 9-POL. 967631-1 AMP

2шт.

140

2929790

ELEC. TERMINAL PIN

CONTACT PIN 0,5-1,0 2-962841-1 AMP

61шт.

141

2929771

ELEC. TERMINAL PIN

CONTACT PIN >1,0-2,5 2-962842-1 AMP

27шт.

142

971552

HOUSING

RECEPTACLE HOUSING, Replaces 423142A1

1шт.

143

971361

ELEC CONNECTOR,Male, 0.5 - 2.1 mm2

MALE CONNECTOR 0,5-2,1 926898-1 AMP, Replaces 423143A1

6шт.

144

2930051

CONTACT HOUSING

RECEPTACLE 20POL. 282369-1 AMP

1шт.

145

2930053

CONNECTION,ELECTRIC,0.75 - 1.5 mm2

BUSHING 0,75-1,5 282375-1 AMP

20шт.

146

2929782

MULTIPOLE CONNECTOR,12 Pole

PIN MCP 12-POL. 1-967627-1 AMP

1шт.

147

2929786

LOCKING DEVICE

MCP 12-POL. 967632-1 AMP

1шт.

148

2929779

MULTIPOLE CONNECTOR,21 Pole

PIN HOUSING MCP 21-POL. 1-967630-1 AMP

1шт.

149

2929783

LOCKING DEVICE

MCP 21-POL. 967635-1 AMP

1шт.

150

43417

CABLE TERMINAL

46234-6-10, Replaces 421066A1

1шт.

151

1495323

CAP

Replaces 421210A1

3шт.

152

2929781

MULTIPOLE CONNECTOR,15 Pole

PIN MCP 15-POL. 1-967628-1 AMP

2шт.

153

2929785

LOCKING DEVICE

MCP 15-POL. 967633-1 AMP

2шт.

154

2929780

MULTIPOLE CONNECTOR,18 Pole

PIN MCP 18-POL. 1-967629-1 AMP

1шт.

155

2929784

LOCKING DEVICE

MCP 18-POL. 967634-1 AMP

1шт.

156

80918

CABLE TERMINAL

46234-5-6

1шт.

157

2974540

TERMINAL

46234-6-6

1шт.

176

94919

CABLE TIE

CABLE STRAP TIE T80I 4,7 x 300 111-08290 , Replaces 421076A1

39шт.
