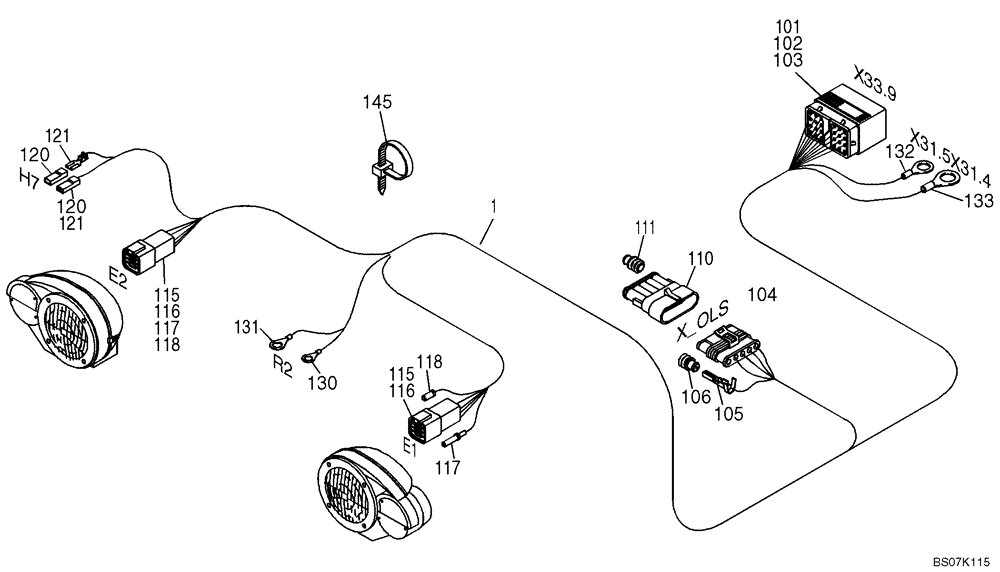

Запчасти Case 21D (32.133[2987732000]) - WIRE HARNESS FRONT CARRIAGE (55) - ELECTRICAL SYSTEMS

1

3004861

WIRE HARNESS

Incl. 101-145

1шт.

101

2929775

MULTIPOLE CONNECTOR,18 Pole

1шт.

102

2929772

CONTACT HOUSING

11шт.

103

2929773

CONTACT HOUSING

1шт.

104

2928553

ELEC CONNECTOR

1шт.

105

2928185

CABLE TERMINAL

Replaces 424098A1

5шт.

106

2928184

GASKET

Replaces 424097A1

5шт.

110

2929138

CONTACT HOUSING,5 Pole

1шт.

111

2929160

PLUG

Dummy

5шт.

115

2928232

CONTACT HOUSING

Replaces 421024A1

2шт.

116

2928247

LOCKING TAB

Replaces 421025A1

2шт.

117

2928240

ELEC. TERMINAL PIN

Replaces 2928236

10шт.

118

7229705

PLUG

Replaces 421029A1

2шт.

120

4160261

TERMINAL

Replaces 421053A1

2шт.

121

2978339

TERMINAL

2шт.

130

2974541

TERMINAL

1шт.

131

2974542

TERMINAL

1шт.

132

2928251

ELEC CONNECTOR

Replaces 536509

1шт.

133

1709720

CABLE TERMINAL

Replaces 422492A1

1шт.

145

726789

CABLE TIE,M4.8 x 188

CABLE STRAP Replaces 421076A1

12шт.
