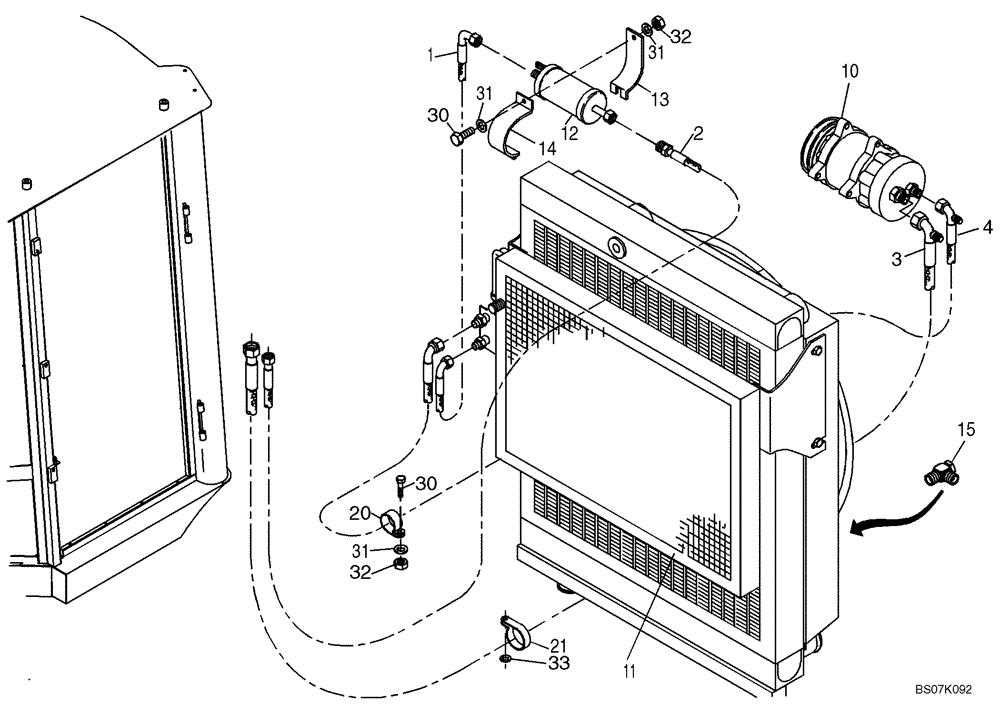

Запчасти Case 21D (27.400[2988478002]) - AIR CONDITIONING SYSTEM (50) - CAB CLIMATE CONTROL

1

4550653

HYDRAULIC HOSE,9.53mm ID x 825mm L

8 x 825mm Replaces 423979A1

1шт.

2

4552509

HYDRAULIC HOSE,9.53mm ID x 1280mm L

8 x 1280mm

1шт.

3

2772745

HYDRAULIC HOSE

16 x 1620mm

1шт.

4

2772744

HYDRAULIC HOSE

10 x 870mm

1шт.

10

Compressor Installation (4552322) See Fig 27.450

1шт.

11

Capacitor Installation (4552324) See Fig 27.420

1шт.

12

2928293

RECEIVER-DRYER

Replaces 423983A1, Includes Pressure Switch (NSS)

1шт.

13

2928295

BRACKET

Replaces 423984A1

1шт.

14

2928296

BRACKET

Replaces 423985A1

1шт.

15

2479668

HYD CONNECTOR

1шт.

20

750518

CLAMP

Replaces 424321A1

1шт.

21

726779

HOSE CLIP

Replaces 515-21302

1шт.

31

2975165

WASHER

M8

6шт.

32

43362

NUT,M8 x 1.25, Cl 10

3шт.

33

2372234

WASHER

Replaces 895-11006

1шт.
