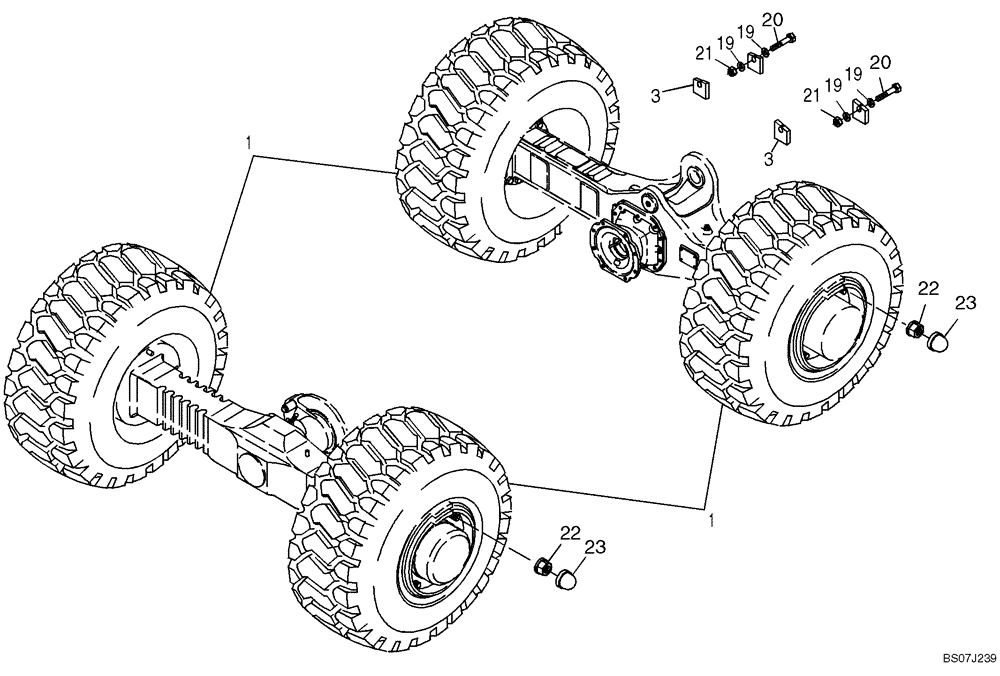

Запчасти Case 21D (05.091[2987538001]) - WHEELS INSTALLATION 335/80R18 EM SPT9 (44) - WHEELS

1

2772651

Wheel Assy, See Fig 05.101

1шт.

3

4552132

STOP

Limit

2шт.

19

56992

WASHER,17mm ID x 30mm OD x 3mm Thk

M17 x 30 x 3

4шт.

20

108533

BOLT,Hex, M16 x 65mm, Cl 8.8

Replaces 814-16065

2шт.

21

987230

NUT,M16, Cl 10

Replaces 829-1416

2шт.

22

2973273

WHEEL NUT

32шт.

23

1558052

CAP

Replaces 424242A1

32шт.
