(01.100[2988515001]) - FRAME BASIC MACHINE WITH MOUNT. PARTS

Запчасти Case 21D (01.100[2988515001]) - FRAME BASIC MACHINE WITH MOUNT. PARTS (39) - FRAMES AND BALLASTING

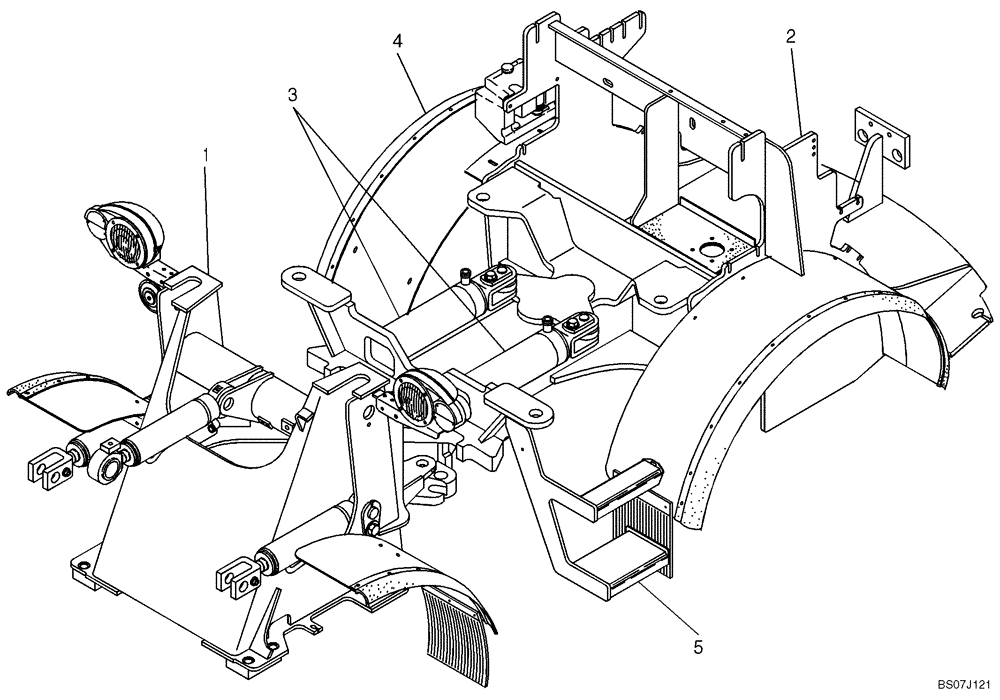

Схема запчастей Case 21D - (01.100[2988515001]) - FRAME BASIC MACHINE WITH MOUNT. PARTS (39) - FRAMES AND BALLASTING
1
2
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Front Frame with Mount (2772582), See Fig 01.400

1шт.

2

Rear Frame with Mount (2772588), See Fig 01.500

1шт.

3

Articulated Joint (2772611), See Fig 01.450

1шт.

4

Wheel Cover Installation (2772678), See Fig 01.680

1шт.

5

Steps Installation (2772909), See Fig 01.810

1шт.
