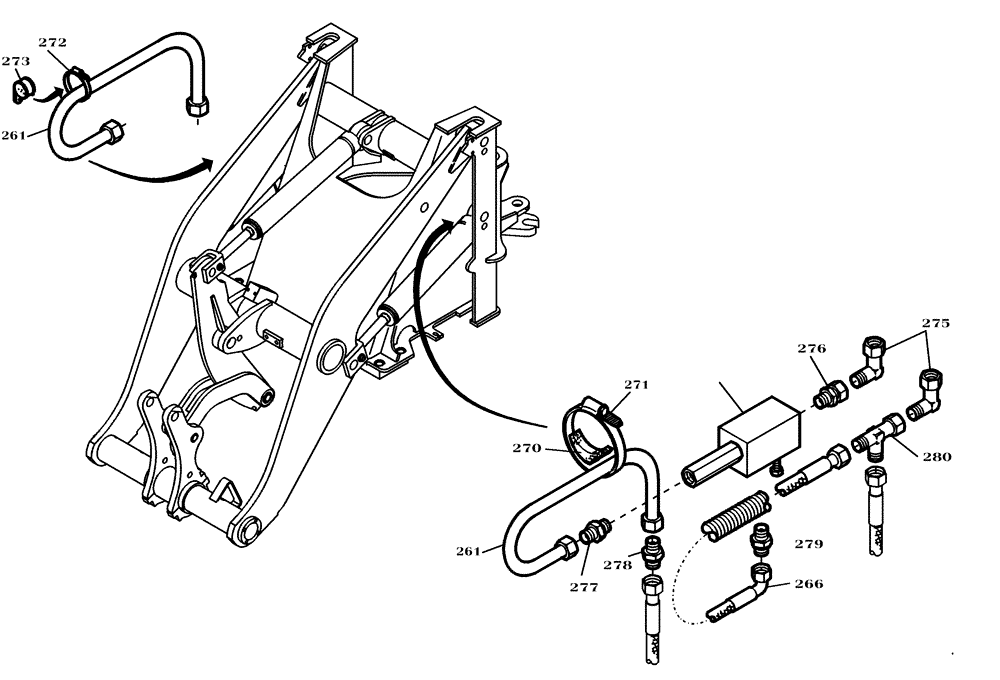

Запчасти Case 21D (76.250[2811817001]) - PIPE-BREAK PROTECTION LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

261

7723935

ADAPTER

Line, Replaces 421418A1

2шт.

265

4530078

VALVE

Stop, See Fig 23.142

1шт.

266

2185772

HYDRAULIC HOSE

8 x 350mm, Replaces 421433A1

2шт.

270

1547469

SUPPORT

Replaces 421406A1

2шт.

271

725333

HOSE CLAMP

Replaces 421407A1

2шт.

273

8468546

CLAMP

Replaces 421435A1

1шт.

275

1636005

ELBOW

Replaces 420894A1

4шт.

276

2781654

HYD CONNECTOR

Replaces 421436A1

2шт.

277

7730058

HYD CONNECTOR

Replaces 421437A1

2шт.

278

1590188

HYD CONNECTOR

Replaces 3146448R1

2шт.

279

2247096

HYD CONNECTOR

Replaces 421416A1

2шт.

280

1636028

TEE

Replaces 421439A

2шт.

290

3000188

HOSE PROTECTION

1шт.
