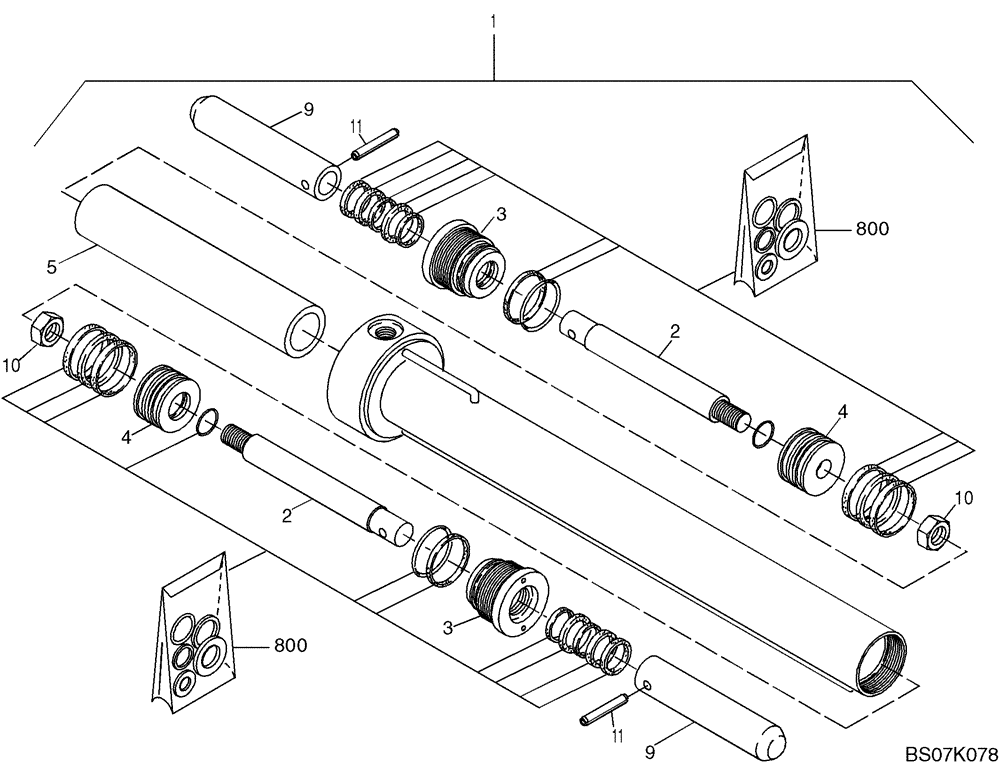

Запчасти Case 21D (24.320[2942618001]) - CYLINDER QUICK-HITCH (35) - HYDRAULIC SYSTEMS

1

4531367

HYDRAULIC CYLINDER,Double Acting, 22mm Rod, 70mm Stroke

Replaces 422712A1

1шт.

2

6900937

ROD

Replaces 423893A1

2шт.

3

6900938

GLAND

Replaces 423894A1

2шт.

4

6900939

PISTON

Replaces 423895A1

2шт.

5

6900940

SPACER

Replaces 423896A1

1шт.

9

1474748

PIN,40mm OD x 197mm L

Pin 10 x 197mm, Replaces 423897A1

2шт.

10

7301235

NUT

Replaces 423898A1

2шт.

11.1

13833

ROLL PIN

Replaces 423899A1

2шт.

11.2

1537597

LOCK PIN

5 x 70mm Replaces 423900A1

2шт.

800

6900941

GASKET KIT

Replaces 423901A1

1шт.
