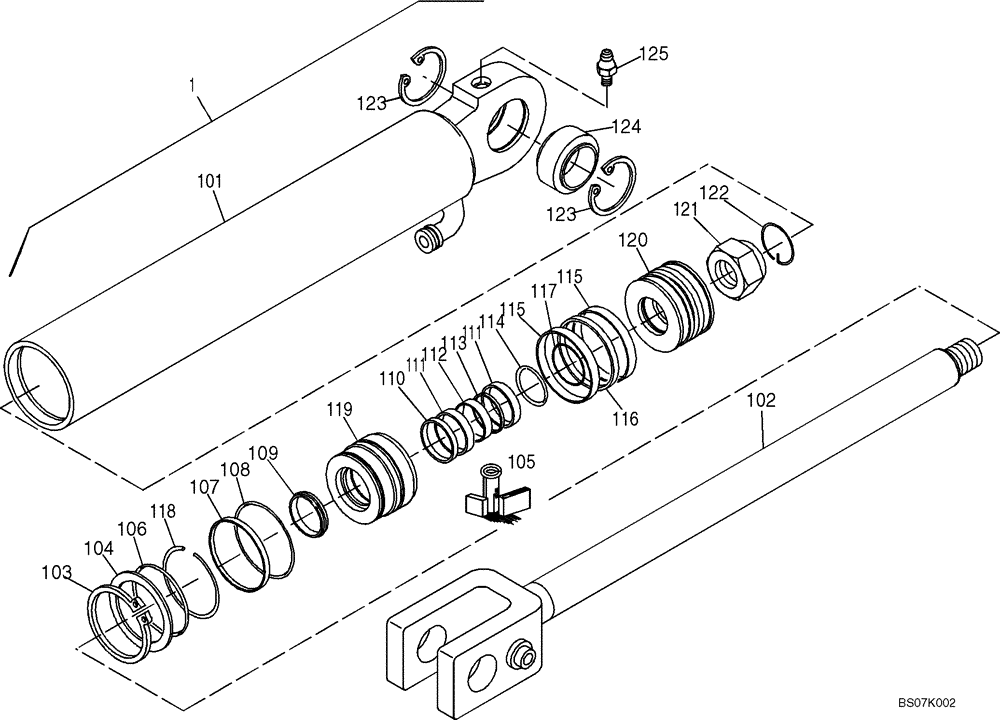

Запчасти Case 21D (24.082[2940565000]) - TIP CYLINDER (35) - HYDRAULIC SYSTEMS

1

2772059

HYDRAULIC CYLINDER

Tip, Replaces 420166A1

1шт.

101

4521816

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 430mm Stroke

Replaces 420167A1

1шт.

102

1474580

PISTON ROD

Replaces 420168A1

1шт.

103

8439410

SNAP RING

Replaces 420169A1

1шт.

104

1474584

WRAPPER

Replaces 420170A1

1шт.

105

1474581

GASKET

Gasket Set Incl. 106-117, Replaces 420171A1

1шт.

106

12153

O-RING,100mm ID x 5mm Width

Replaces 420175A1

1шт.

107

1474600

RING

Replaces 420182A1

1шт.

108

4149290

O-RING,92mm ID x 4mm Width

Replaces 420176A1

1шт.

109

8486040

SCRAPER

Replaces 420184A1

1шт.

110

8486039

RING

Replaces 420180A1

1шт.

111

8402885

RING

Replaces 420179A1

2шт.

112

1983864

GASKET

SEALRING Replaces 420177A1

1шт.

113

422655

SEALING RING,44.04mm ID x 3.53mm Width

Replaces 420177A1

1шт.

114

12134

O-RING,40mm ID x 3mm Width

40 x 3-5/588, Replaces 420172A1

1шт.

115

2978372

WEAR RING

2шт.

116

8202981

GASKET

Replaces 420183A1

1шт.

117

1991772

O-RING

Replaces 420174A1

1шт.

118

1474577

SNAP RING

Replaces 420185A1

1шт.

119

1474578

GLAND

Replaces 420186A1

1шт.

120

1474579

PISTON

Replaces 420187A1

1шт.

121

1474582

NUT

Replaces 420188A1

1шт.

122

1462426

SNAP RING

Replaces 420189A1

1шт.

123

370012

RING,M62, Internal

2шт.

124

2978735

SPHERICAL BEARING,40mm ID x 62mm OD x 28mm W

1шт.

125

2973067

LUBE NIPPLE

8 x 1-5.8

1шт.

130

8487921

BODY

Not Shown

1шт.
