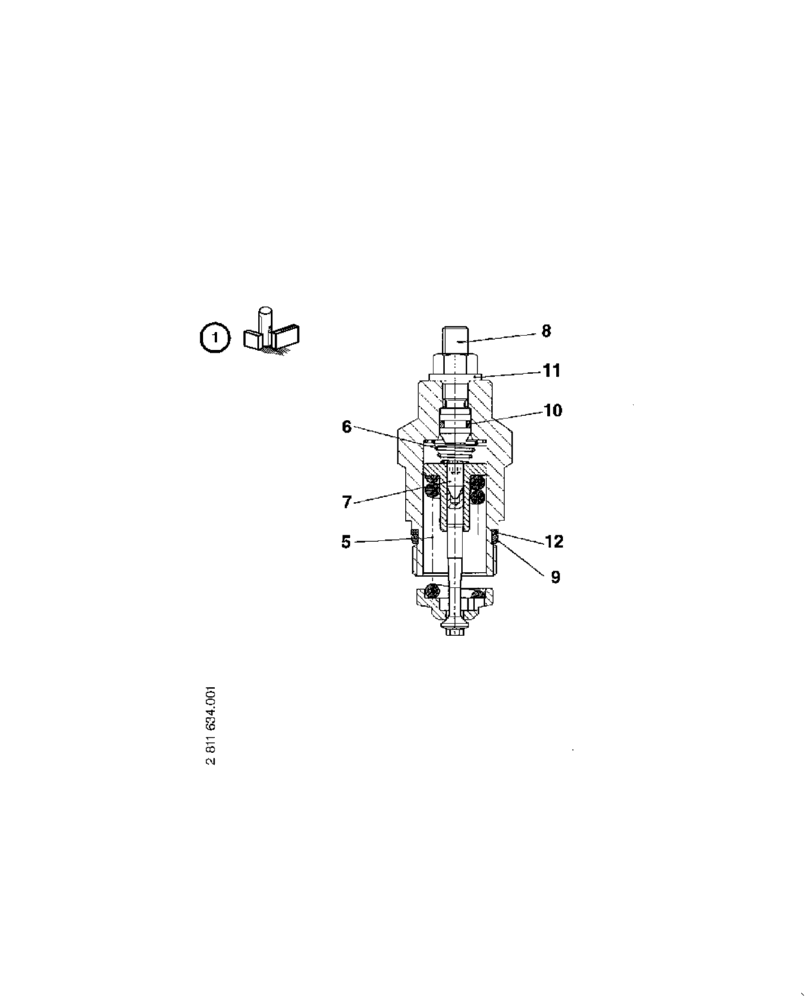

Запчасти Case 21D (23.032[2811634001]) - VALVE, PRESSURE RELIEF (35) - HYDRAULIC SYSTEMS

1

1481185

HYDRAULIC VALVE

Replaces 420607A1

1шт.

105

1456665

SPRING

12V, Replaces 420608A1

1шт.

106

1456666

SPRING

12V, Replaces 420608A1

1шт.

107

1481988

SET SCREW

Replaces 420611A1

1шт.

108

8486167

SET SCREW

Replaces 420612A1

1шт.

109

971901

O-RING

Replaces 420615A1

1шт.

110

2976143

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

111

8487655

NUT

Replaces 420619A1

1шт.

112

1472253

RING

Replaces 420620A1

1шт.
