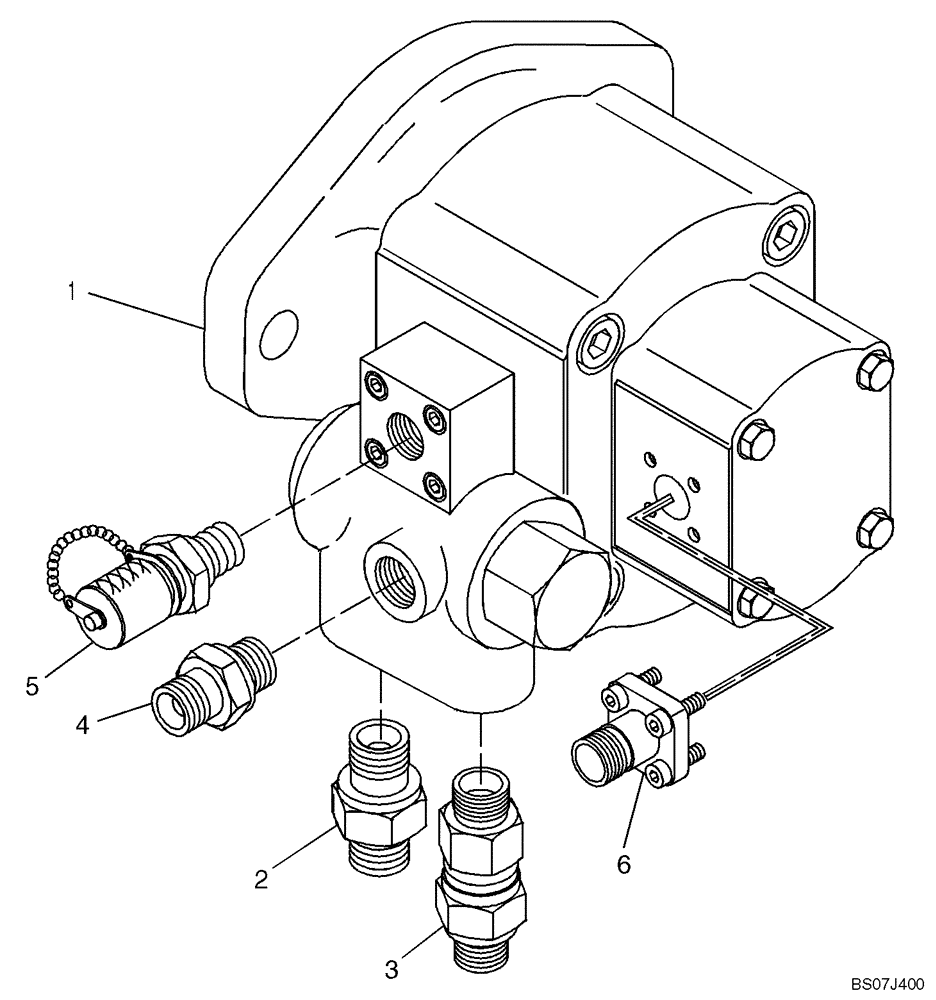

Запчасти Case 21D (22.050[2987621001]) - GEAR PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS

1

4532252

HYDRAULIC PUMP

Gear Pump See Fig 22.052

1шт.

2

2115649

CHECK VALVE

Replaces 420721A1

1шт.

3

1768191

HYD CONNECTOR

Replaces 420477A1

1шт.

4

1338218

HYD CONNECTOR

3901-L 8 E-M-ST, Replaces 420723A1

1шт.

5

2739719

COUPLING

M12 x 1.5, Replaces 420711A1

1шт.

6

1960191

FITTING

Replaces 420719A1

1шт.
