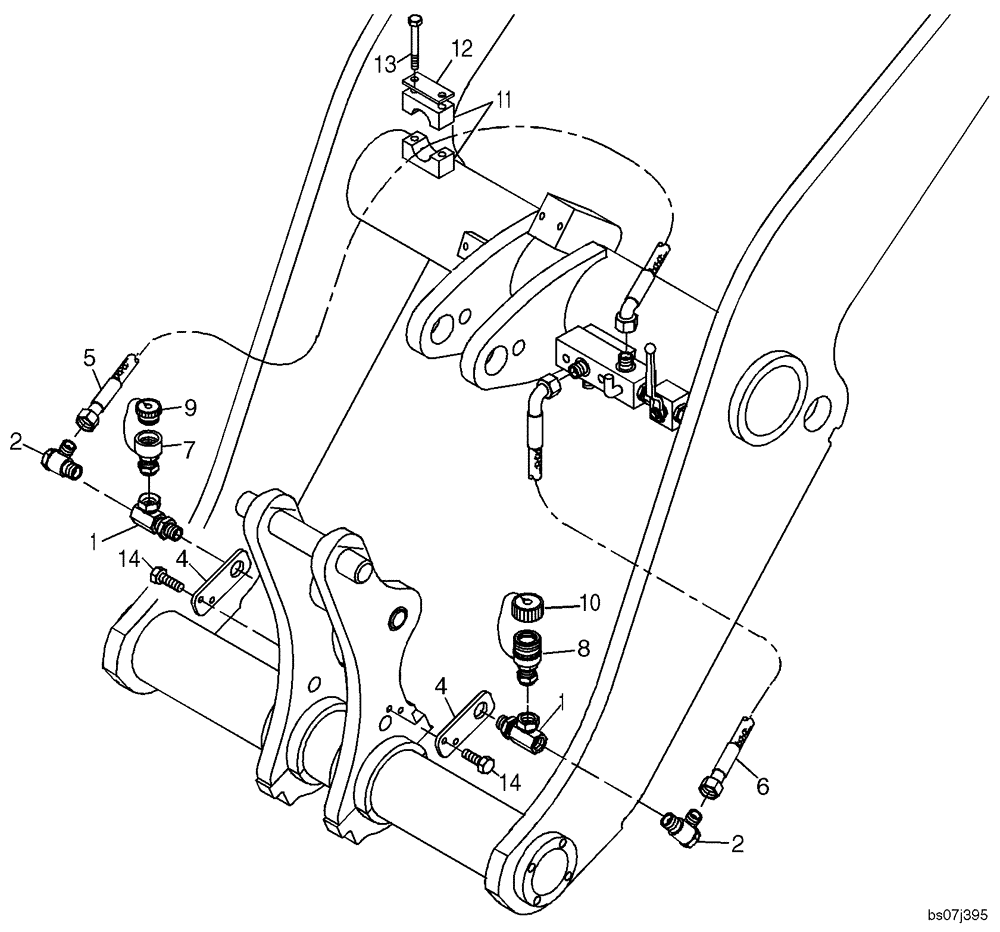

Запчасти Case 21D (20.570[2731348004]) - HYDRAULIC SYSTEM ADDITIONAL 3RD FUNCT. (35) - HYDRAULIC SYSTEMS

1

2438188

ELBOW,M26 x 1.5 x M22 x 1.5 x M22 x 1.5

Replaces 421283A1

2шт.

2

2739649

90 ELBOW

Replaces 421284A1

2шт.

4

2772238

PLATE

10 x 50 x 125, Replaces 423777A1

2шт.

5

2700346

HYDRAULIC HOSE

12 x 1675mm , Replaces 421285A1

1шт.

6

2700347

HYDRAULIC HOSE

12 x 900 mm , Replaces 421286A1

1шт.

7

2268322

COUPLING

Replaces 421287A1

1шт.

8

2268321

COUPLING

Replaces 421288A1

1шт.

9

2268324

COUPLING

Replaces 421289A1

1шт.

10

2268323

DUST CAP

Replaces 421290A1

1шт.

11

971585

CLAMP

Replaces 421291A1

2шт.

12

598093

PLATE

Replaces 421292A1

2шт.

13

55066

BOLT,Hex, M6 x 40mm, Cl 8.8

Replaces 814-6040

4шт.

14

56656

BOLT,Hex, M10 x 20mm, Cl 8.8

Replaces 614-10020

4шт.
