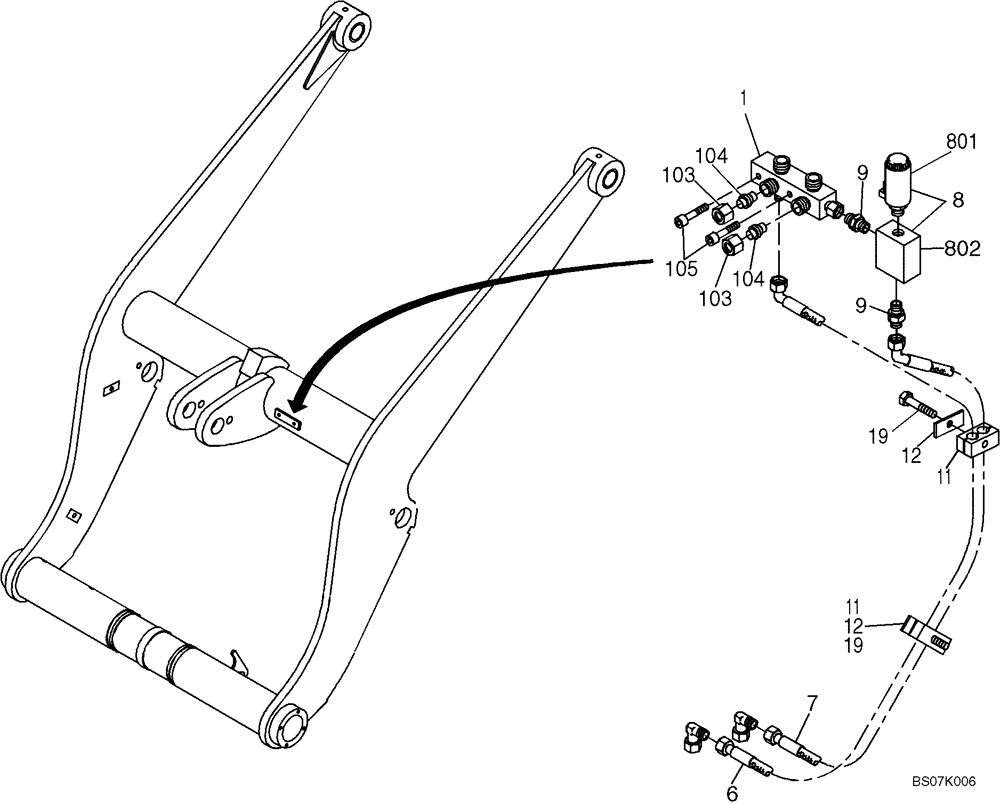

Запчасти Case 21D (20.561[2990504000]) - HYDRAULIC SYSTEM QUICK-HITCH (DISTRIBUTOR) (35) - HYDRAULIC SYSTEMS

1

2772753

VALVE

Incl. 103-105

1шт.

6

4518349

HYDRAULIC HOSE

10 x 1000mm, Replaces 420897A1

1шт.

7

2772754

HYDRAULIC HOSE

10 x 940mm N45/N-2SN

1шт.

8

4532260

SOLENOID VALVE

SHIFT, Incl. 801-802

1шт.

9

8411033

HYD CONNECTOR

2шт.

11

1558227

CLAMP

Replaces 420899A1

1шт.

12

900529

PLATE

Replaces 420900A1

1шт.

19

55085

BOLT,Hex, M8 x 45mm, Cl 8.8

Replaces 814-8045

1шт.

103

10667

NUT

Replaces 3138531R1

2шт.

104

2292288

HYD CONNECTOR

Replaces 420903A1

2шт.

105

2976368

SCREW

M10 x 35-8.8

2шт.

801

4532291

SOLENOID

Replaces 2929993

2шт.

802

2929996

CONNECTING BLOCK

1шт.
