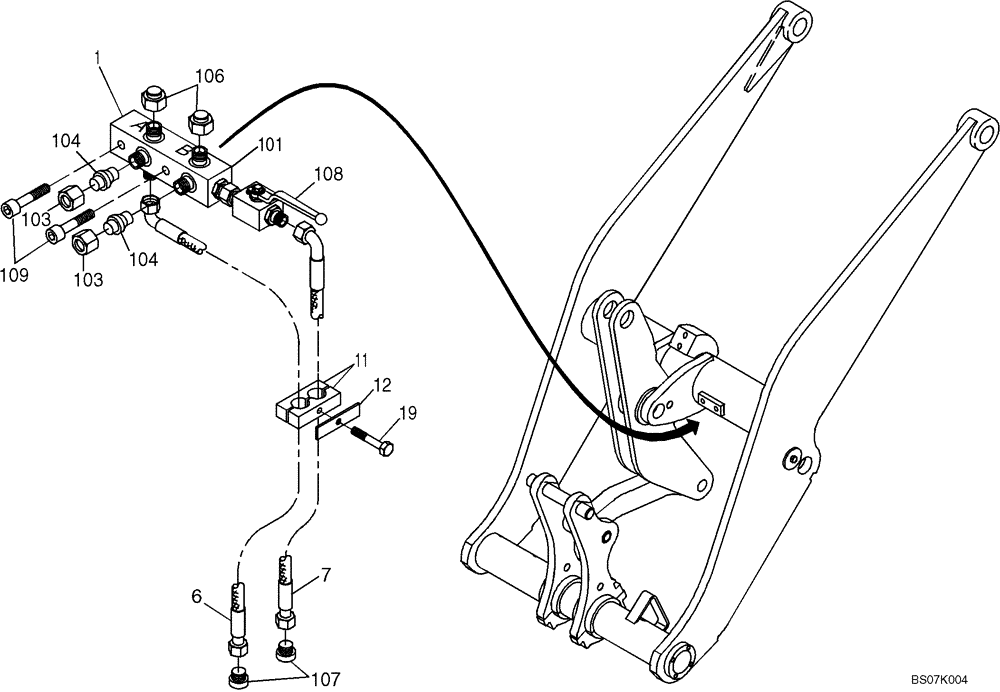

Запчасти Case 21D (20.560[2941097000]) - HYDRAULIC SYSTEM QUICK-HITCH (35) - HYDRAULIC SYSTEMS

1

2438706

VALVE

Incl 101-109, Replaces 420896A1

1шт.

6

4518349

HYDRAULIC HOSE

10 x 1000mm, Replaces 420897A1

1шт.

7

2479533

HYDRAULIC HOSE

10 x 900mm, Replaces 420897A1

1шт.

11

1558227

CLAMP

Replaces 420897A1

1шт.

12

900529

PLATE

Replaces 420900A1

1шт.

19

55085

BOLT,Hex, M8 x 45mm, Cl 8.8

Replaces 814-8045

1шт.

101

2438705

HYDRAULIC VALVE

Replaces 420902A1

1шт.

103

10667

NUT

Replaces 3138531R1

2шт.

104

2292288

HYD CONNECTOR

Replaces 420903A1

2шт.

106

215670

PLUG

Replaces 420467A1

2шт.

107

58057

PLUG

Replaces 420888A1

2шт.

108

145164

CONTROL VALVE

Replaces 420904A1

1шт.

109

2976368

SCREW

2шт.
