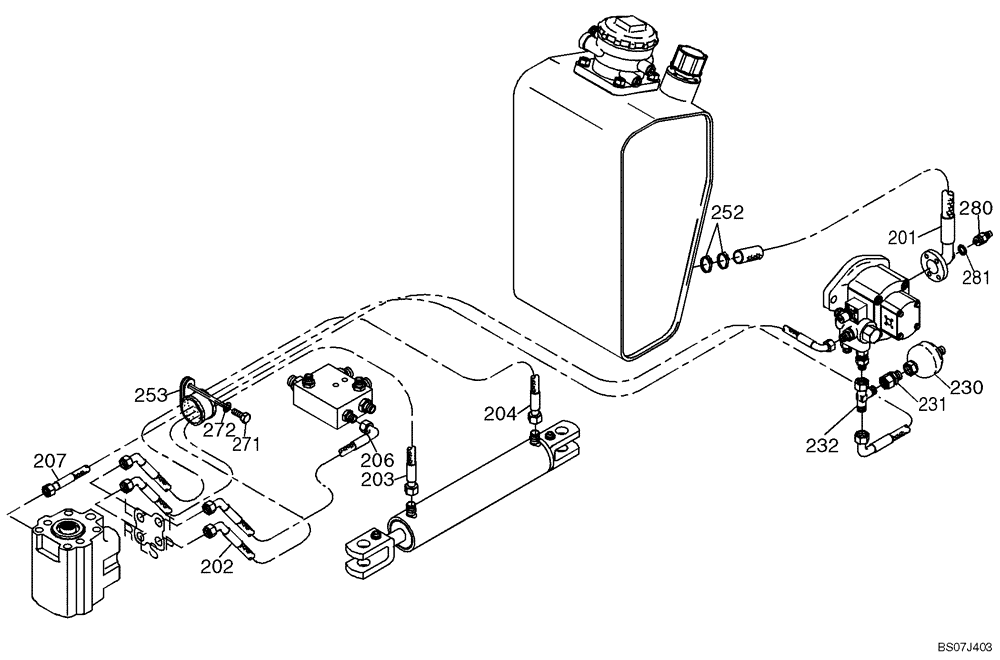

Запчасти Case 21D (20.530[2987633001]) - HYDRAULIC SYSTEM STEERING (35) - HYDRAULIC SYSTEMS

201

2772716

HYDRAULIC HOSE

32 x 830 mm

1шт.

202

2772714

HYDRAULIC HOSE

12 x 2840 mm

1шт.

203

2186604

HYDRAULIC HOSE

12 x 700 mm N/N45-2SN, Replaces 420948A1

1шт.

204

2186605

HYDRAULIC HOSE

12 x 1050 mm, Replaces 420949A1

1шт.

206

2813913

HYDRAULIC HOSE

12 x 515 mm

1шт.

207

2772715

HYDRAULIC HOSE

6 x 2230 mm

1шт.

230

2900953

ACCUMULATOR,0.16L

1шт.

231

7723965

HYD CONNECTOR

Replaces 421409A1

1шт.

232

1991910

TEE

Replaces 422532A1

1шт.

252

2979287

HOSE CLAMP

2шт.

253

8403429

CLAMP

Replaces 422182A1

1шт.

271

56656

BOLT,Hex, M10 x 20mm, Cl 8.8

Replaces 614-10020

1шт.

272

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

280

425841

TEMPERATURE SWITCH

Temperature Select, Replaces 422781A1

1шт.

281

54837

SEALING RING

SEALRING Replaces 422782A1

1шт.
