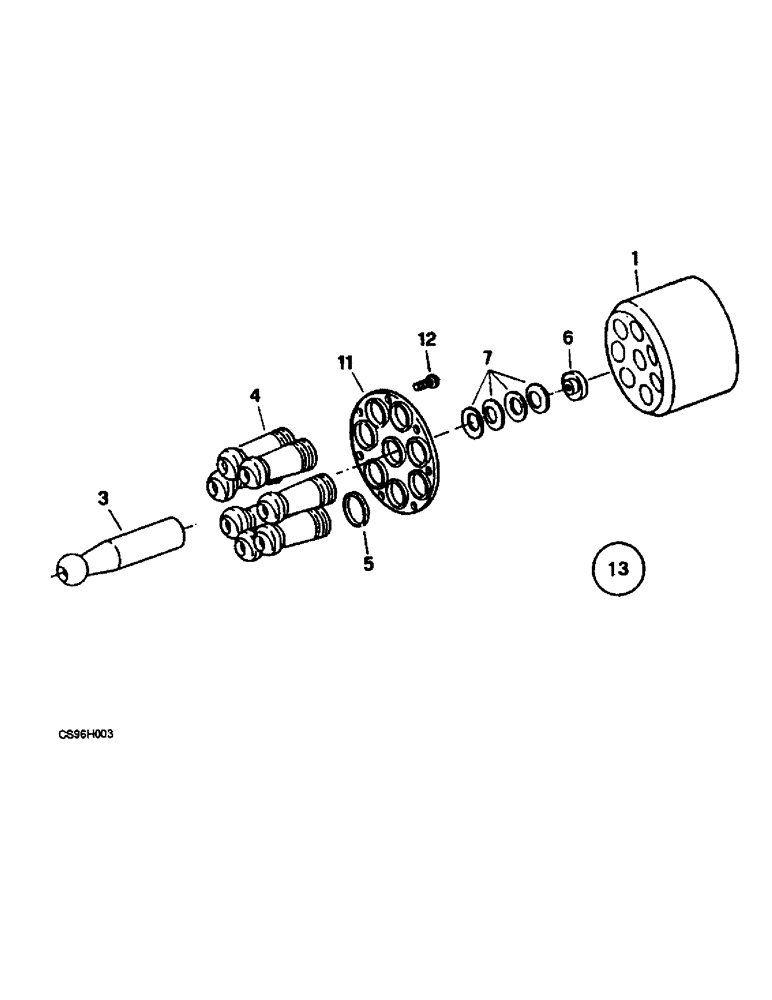

Запчасти Case 221B (8-24) - TRAVEL HYDRAULIC MOTOR - ROTOR, 121B DAH1215912- / 221B DAH2215913- (08) - HYDRAULICS

1

215924A1

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

3

215925A1

PISTON

1шт.

4

215926A1

PISTON

7шт.

5

215927A1

RING, PISTON

SEGMENT

14шт.

6

215928A1

BLOCK

GUIDE

1шт.

7

215929A1

SET OF PARTS

4шт.

11

215930A1

LARGE PLATE

PLATE, LARGE

1шт.

12

215931A1

SCREW

14шт.

13

215908A1

LOCK, CYLINDER

LOCK-CYLINDER

1шт.
