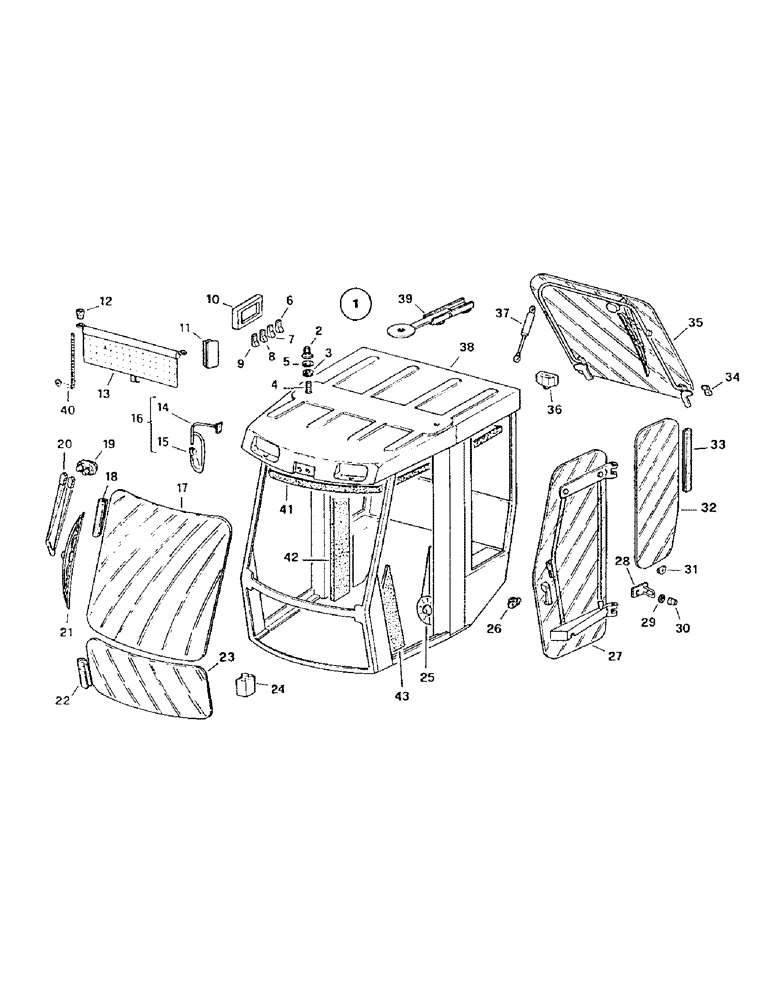

Запчасти Case 221B (9-49A) - CAB, 121B DAH121B DAH6530- / 221B DAH2216537- (09) - CHASSIS/ATTACHMENTS

1

218850A1

CAB

Consists Of Ref. Numbers : 1- 43

1шт.

2

218809A1

SUPPORT

RING

2шт.

3

218810A1

GROMMET

WASHER

2шт.

4

218811A1

STUD

2шт.

5

218812A1

WASHER

2шт.

6

215488A1

TOGGLE SWITCH

rocker

1шт.

7

218813A1

SWITCH

rocker

1шт.

8

215486A1

TOGGLE SWITCH

rocker

1шт.

9

215488A1

TOGGLE SWITCH

rocker

1шт.

10

218814A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT SUPPORT

1шт.

11

218815A1

COURTESY LIGHT

DOME LIGHT interior

1шт.

12

216120A1

BUSHING

1шт.

13

218816A1

VISOR, SUN

shield, sun

1шт.

14

216070A1

SUPPORT

2шт.

15

216071A1

MIRROR

rear, view

2шт.

16

216072A1

MIRROR

rear, view, Consists Of Ref. Numbers : 14, 15

2шт.

17

218796A1

GLASS

windshield

1шт.

18

216075A1

GASKET

window

1шт.

19

216077A1

MOTOR, ELECTRIC

WIPER, Consists Of Ref. Numbers : 19A, 19B

1шт.

19a

216076A1

WIPER MOTOR

MOTOR, WIPER

1шт.

19b

216078A1

CRANK LEVER

1шт.

20

216079A1

WIPER ARM

ARM, WIPER HOLDER brush

1шт.

21

216080A1

WIPER BLADE

BLADE, WIPER

1шт.

22

216081A1

GASKET

SEAL window

1шт.

23

216082A1

GLASS

1шт.

24

216083A1

CAN

RESERVOIR

1шт.

25

REF

INSTRUCTION

UNIT heater See Figure 9-53A

1шт.

26

216084A1

CATCH PLATE

2шт.

27

REF

INSTRUCTION

DOOR right, See Figure 9-51A

1шт.

27

REF

INSTRUCTION

DOOR left, See Figure 9-51A

1шт.

28

218851A1

CATCH PLATE

2шт.

29

216094A1

WASHER

2шт.

30

216095A1

SHOCK ABSORBER

STOP

2шт.

31

216103A1

BLOCK DRIVER

STOP

8шт.

32

216104A1

GLASS

2шт.

33

216105A1

GASKET

SEAL window

2шт.

34

216106A1

HANDLE

PLATE catch

2шт.

35

REF

INSTRUCTION

WINDOW ASSY., See Figure 9-51A

1шт.

36

216108A1

LIGHT

LAMP

3шт.

37

216109A1

GAS STRUT

CYLINDER

2шт.

38

216087A1

ROOF

FRAME cab, Order : 218822A1

1шт.

39

216088A1

SUPPORT

1шт.

40

218823A1

GUIDE

SLIDE

2шт.

41

218824A1

LINING

1шт.

42

218825A1

LINING

1шт.

43

218826A1

LINING

right

1шт.

43

218827A1

LINING

left

1шт.

44

219929A1

PLASTIC CASE

SHEET cover

2шт.

45

219940A1

JET

DIFFUSER windshield washers

1шт.

46

219933A1

SCREW

4шт.

47

219934A1

PLASTIC RING

BUSHING

8шт.

48

216826A1

NUT

4шт.
