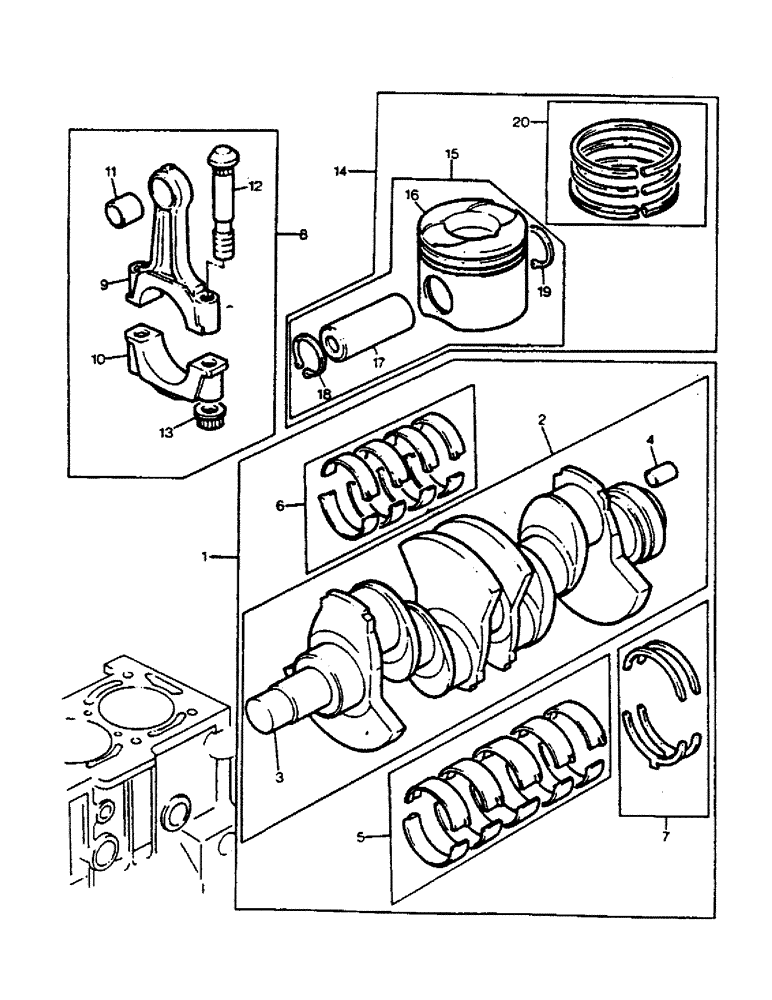

Запчасти Case 221B (2-16) - CRANKSHAFT, PISTONS AND CONNECTING RODS, 121B (DAH1215912-)/ 211B (DAH2215913-) (02) - ENGINE

1

217816A1

CRANKSHAFT

Consists Of : 1-7

1шт.

2

217817A1

CRANKSHAFT

1шт.

3

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

4

217818A1

BUSHING

PIN split

1шт.

5

217819A1

CRANKSHAFT BEARING

SET

1шт.

5

217820A1

SET

bearing, -0.30 mm

1шт.

6

217822A1

SET

bearing

1шт.

6

217823A1

WASHER

SET bearing, -0.30 mm

1шт.

7

217823A1

WASHER

1шт.

8

217824A1

ASSEMBLY

ROD connecting, Consists Of : 9-13

1шт.

9

NSS

NOT SOLD SEPARAT

ROD connecting

4шт.

10

NSS

NOT SOLD SEPARAT

CLAMP

4шт.

11

217825A1

BUSHING

4шт.

12

217826A1

SCREW

8шт.

13

217827A1

NUT

8шт.

14

217828A1

PISTON

Consists Of : 15, 20

4шт.

14

217829A1

PISTON

+0.50 mm Consists Of : 15, 20

4шт.

14

217830A1

PISTON

Consists Of : 15, 20

4шт.

14

217831A1

PISTON

+0.50 mm Consists Of : 15, 20

4шт.

15

217832A1

PISTON

Consists Of : 16-19

1шт.

15

217833A1

PISTON

+0.50 mm Consists Of : 16-19

1шт.

15

217834A1

PISTON

Consists Of : 16-19

1шт.

15

217835A1

PISTON

+0.50 mm Consists Of : 16-19

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON

1шт.

17

NSS

NOT SOLD SEPARAT

PIN

1шт.

18

217836A1

CIRCLIP

1шт.

19

217836A1

CIRCLIP

1шт.

20

217837A1

RING, PISTON

SET

1шт.

20

217838A1

RING, PISTON

SET, +0.50 mm

1шт.
