(9-38) - SEAT, 121B DAH215912-DAH1217193 / 221B DAH2215913-DAH2217195

Запчасти Case 221B (9-38) - SEAT, 121B DAH215912-DAH1217193 / 221B DAH2215913-DAH2217195 (09) - CHASSIS/ATTACHMENTS

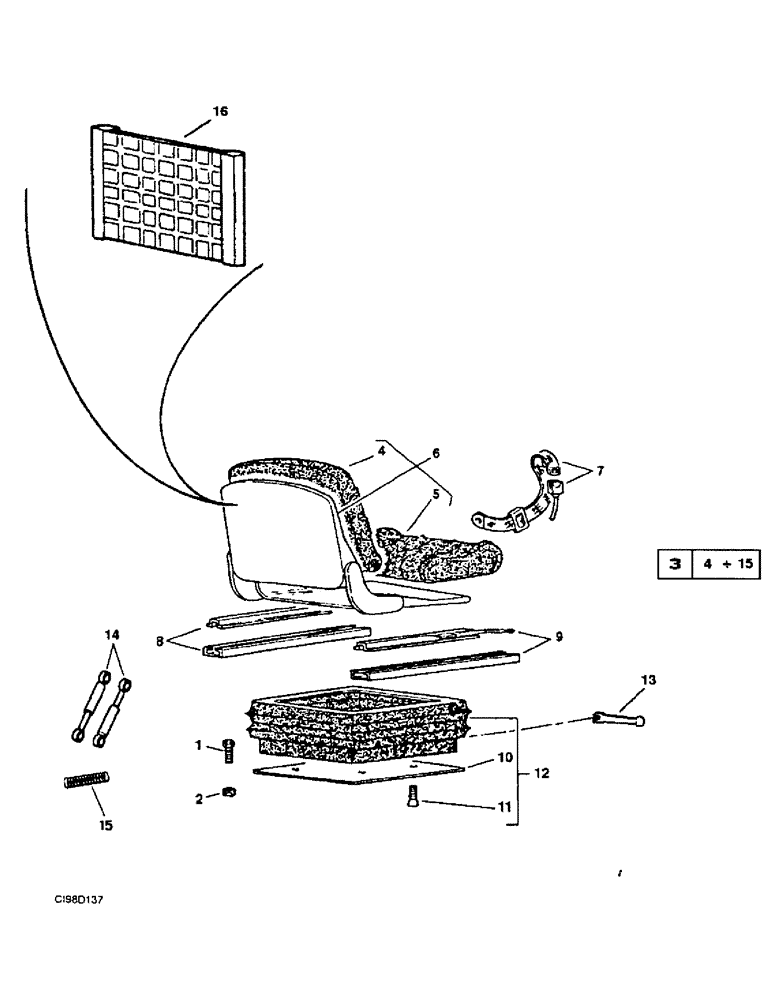

Схема запчастей Case 221B - (9-38) - SEAT, 121B DAH215912-DAH1217193 / 221B DAH2215913-DAH2217195 (09) - CHASSIS/ATTACHMENTS
14
8
4
3
1
10
12
5
15
13
16
6
4
2
15
7
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

215096A1

SCREW

4шт.

2

215097A1

NUT

4шт.

3

215098A1

SEAT

ASSY.

1шт.

4

215099A1

BACKREST

1шт.

5

215100A1

CUSHION, SEAT

1шт.

6

215101A1

SEAT

Consists Of Ref. Numbers : 4, 5

1шт.

7

215102A1

SAFETY BELT

SAFETY BELT

1шт.

8

215103A1

SLIDE

1шт.

9

215104A1

SLIDE

1шт.

10

215105A1

LARGE PLATE

PLATE, LARGE

1шт.

11

215106A1

SCREW

4шт.

12

215107A1

BELLOWS

SUSPENSION ASSY., Consists Of Ref. Numbers : 10, 11

1шт.

13

286065A1

LEVER

STAY window

1шт.

14

285802A1

SHOCK ABSORBER

CYLINDER gas strut

1шт.

15

285803A1

SPRING

2шт.

16

218868A1

POCKET

BOX manual

1шт.
