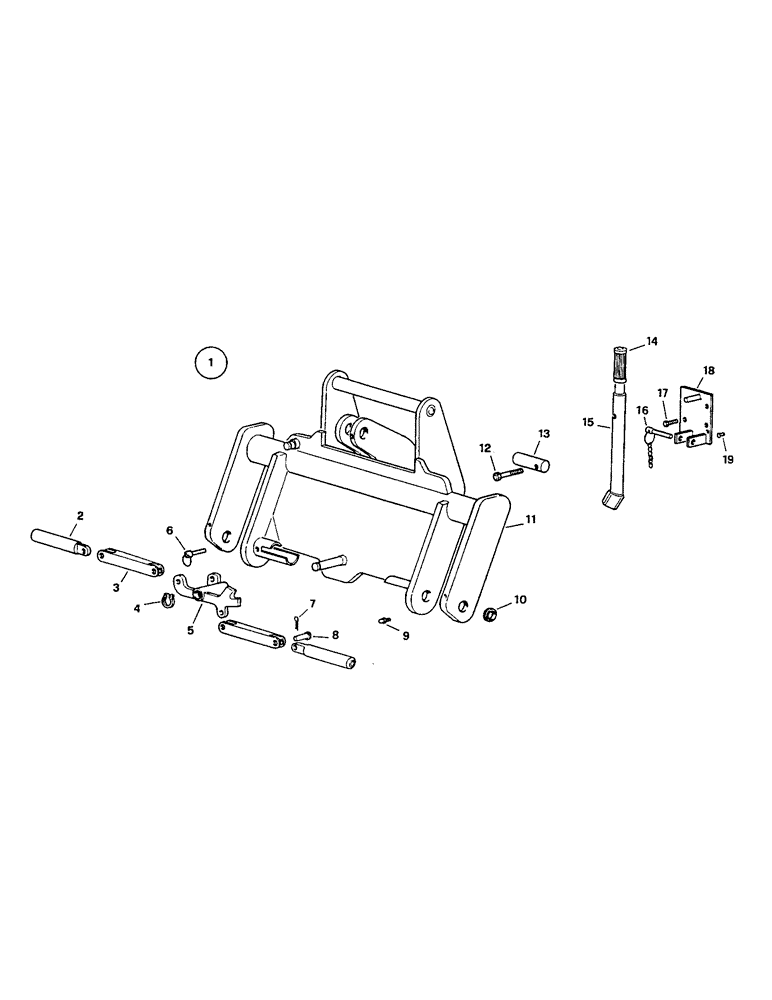

Запчасти Case 221B (9-23C) - MANUAL QUICK CHANGE COUPLER, 121B (DAH1216844-) / 221B (DAH2216854-) (09) - CHASSIS/ATTACHMENTS

1

219107A1

FAST HITCH

COUPLING ASSY., Consist of: 2-19

1шт.

2

219108A1

LARGE PIN

PIN, LARGE split

2шт.

3

219109A1

PITMAN

ROD ASSY.

2шт.

4

219110A1

CIRCLIP

1шт.

5

219111A1

PITMAN

CRANK

1шт.

6

219112A1

RING, SNAP

RING SNAP

1шт.

7

215417A1

SPLIT PIN/SAFETY PIN

4шт.

8

215426A1

CLEVIS PIN

split

4шт.

9

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

5шт.

10

219113A1

BUSHING

2шт.

11

219114A1

FRAME ASSY

PLATE

1шт.

12

219115A1

SCREW

1шт.

13

219116A1

LARGE PIN

PIN, LARGE split

1шт.

14

219117A1

HANDLE

1шт.

15

219118A1

LEVER

1шт.

16

216838A1

SPLIT PIN/SAFETY PIN

1шт.

17

216912A1

SCREW

4шт.

18

219119A1

SUPPORT

1шт.

19

219120A1

RIVET

1шт.
