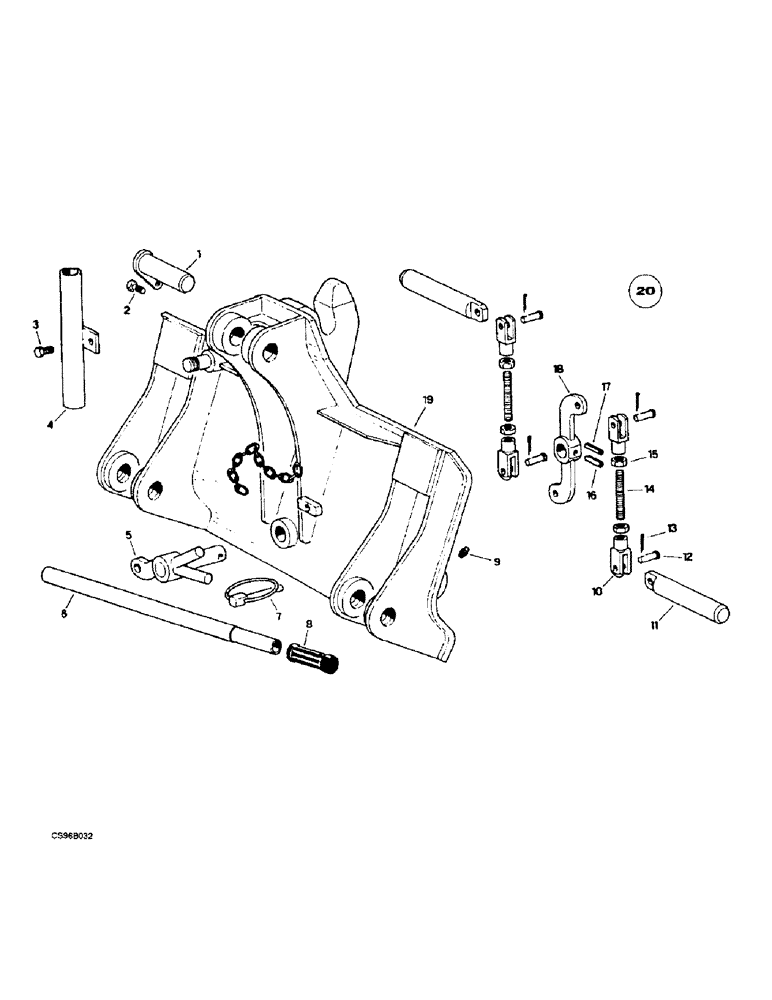

Запчасти Case 221B (9-23A) - MANUAL QUICK CHANGE COUPLER, 121B (DAH1215912-DAH1216843) / 221B (DAH2215913-DAH2216853) (09) - CHASSIS/ATTACHMENTS

1

215052A1

PIN

1шт.

2

215040A1

SCREW,Hex, M10 x 20mm

1шт.

3

216912A1

SCREW

2шт.

5

215419A1

LARGE PIN

PIN, LARGE

1шт.

6

219167A1

LEVER

1шт.

7

216838A1

SPLIT PIN/SAFETY PIN

1шт.

8

219117A1

HANDLE

1шт.

9

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

3шт.

10

215427A1

CLEVIS

4шт.

11

215428A1

LARGE PIN

PIN, LARGE split

2шт.

12

215426A1

CLEVIS PIN

split

4шт.

13

215417A1

SPLIT PIN/SAFETY PIN

4шт.

14

215425A1

ROD,THREADED

THREADED ROD

2шт.

15

215424A1

NUT

4шт.

16

215423A1

SPLIT PIN/SAFETY PIN

1шт.

17

215422A1

SPLIT PIN/SAFETY PIN

1шт.

18

215421A1

LEVER

CRANK

1шт.

19

215420A1

FRAME ASSY

PLATE

1шт.

20

219165A1

FAST HITCH

COUPLING ASSY., Consist of: 1-19

1шт.
