Запчасти Case TV380 (35.220.02[04]) - AUXILIARY HYDRAULIC, HIGH FLOW, ARM PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS

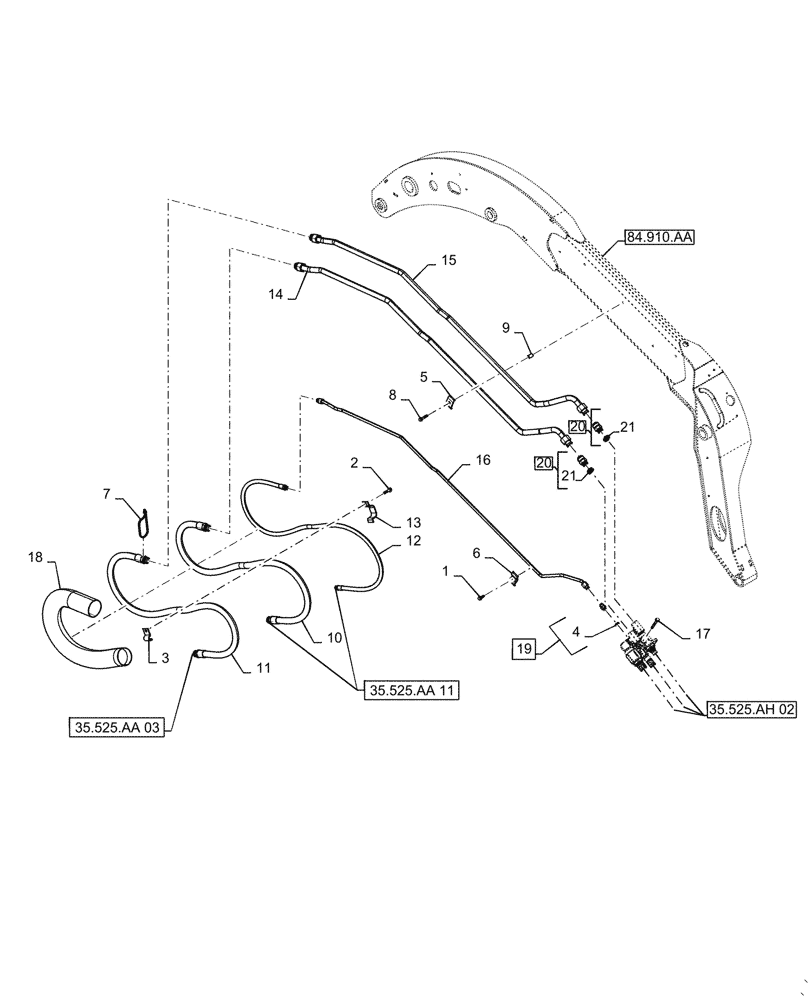

Схема запчастей Case TV380 - (35.220.02[04]) - AUXILIARY HYDRAULIC, HIGH FLOW, ARM PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS
35.525.aa 03
2
12
6
17
7
5
14
20
3
21
19
18
21
10
15
8
20
4
11
13
16
9
1
35.525.ah 02
35.525.aa 11
84.910.aa

Артикул

Название

Примечание

Количество

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

2

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

3

47374617

CLAMP,18mm ID, 12.5mm Bolt Hole, J Type

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

84254045

CLAMP,66mm L

66mm L, Tube

2шт.

6

84254056

HOSE CLAMP,69.2mm L

69.2mm L

3шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.

8

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

9

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

10

84281606

FLEXIBLE HOSE,19.05mm ID x 1835mm L, SAE 100R17

High Flow

1шт.

11

84281607

FLEXIBLE HOSE,19.05mm ID x 1875mm L, SAE 100R17

High Flow

1шт.

12

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

Case Drain

1шт.

13

84282424

HOSE CLAMP

-12 Hose Double

1шт.

14

84297610

RIGID TUBE

25.4mm OD x 2010.4mm L, High Flow

1шт.

15

84297613

RIGID TUBE

25.4mm OD x 1968.3mm L, High Flow

1шт.

16

84297619

RIGID TUBE

12.7mm OD, Case Drain

1шт.

17

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

18

84362111

GUARD,85mm ID x 90mm OD x 1070mm L

Hose

1шт.

19

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 4

1шт.

20

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 21

2шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
