(35.101.02) - SELF LEVELING - NONE SV300,TV380 AFTER MAY 1, 2012

Запчасти Case TV380 (35.101.02) - SELF LEVELING - NONE SV300,TV380 AFTER MAY 1, 2012 (35) - HYDRAULIC SYSTEMS

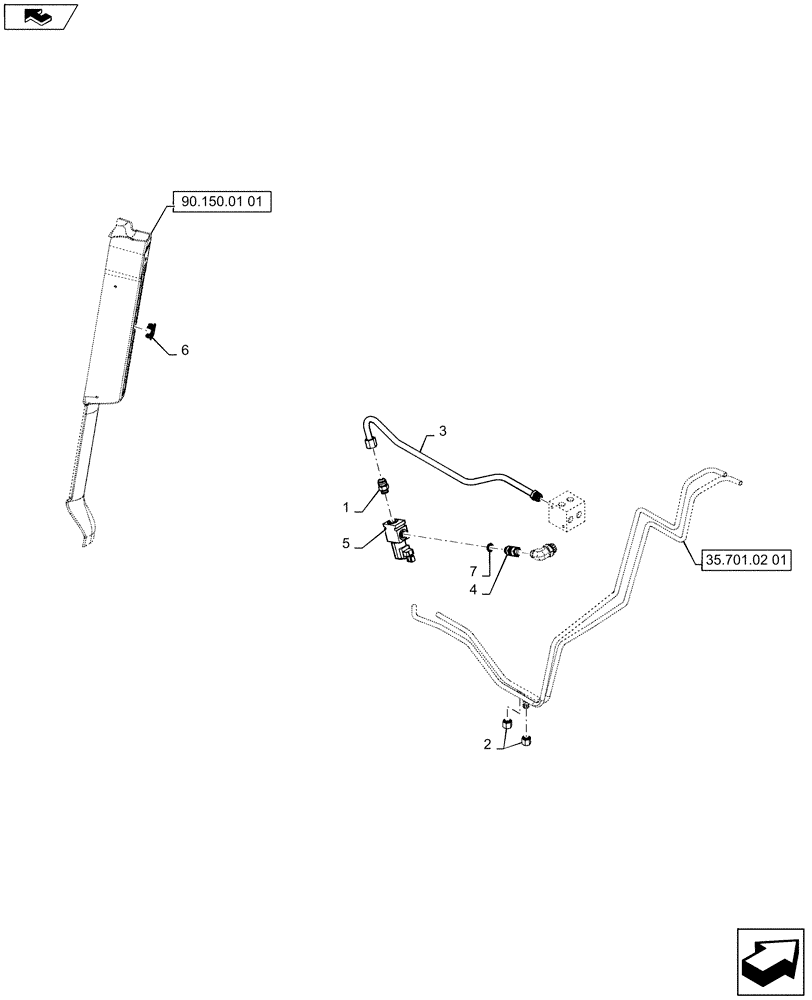

Схема запчастей Case TV380 - (35.101.02) - SELF LEVELING - NONE SV300,TV380 AFTER MAY 1, 2012 (35) - HYDRAULIC SYSTEMS
4
3
2
35.701.02 01
7
90.150.01 01
5
home
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 7

1шт.

2

262159

CAP,3/4" - 16 Fem JIC

2шт.

3

47383485

TUBE

Lower, Loader Valve to Manifold

1шт.

4

84586982

HYD CONNECTOR,7/8" - 14 Fem Sw x 3/4" - 16 ORB

Incl 7

1шт.

5

84593149

VALVE

Rod Lock

1шт.

6

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole, Located In LH A-Post In Cab

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 7
