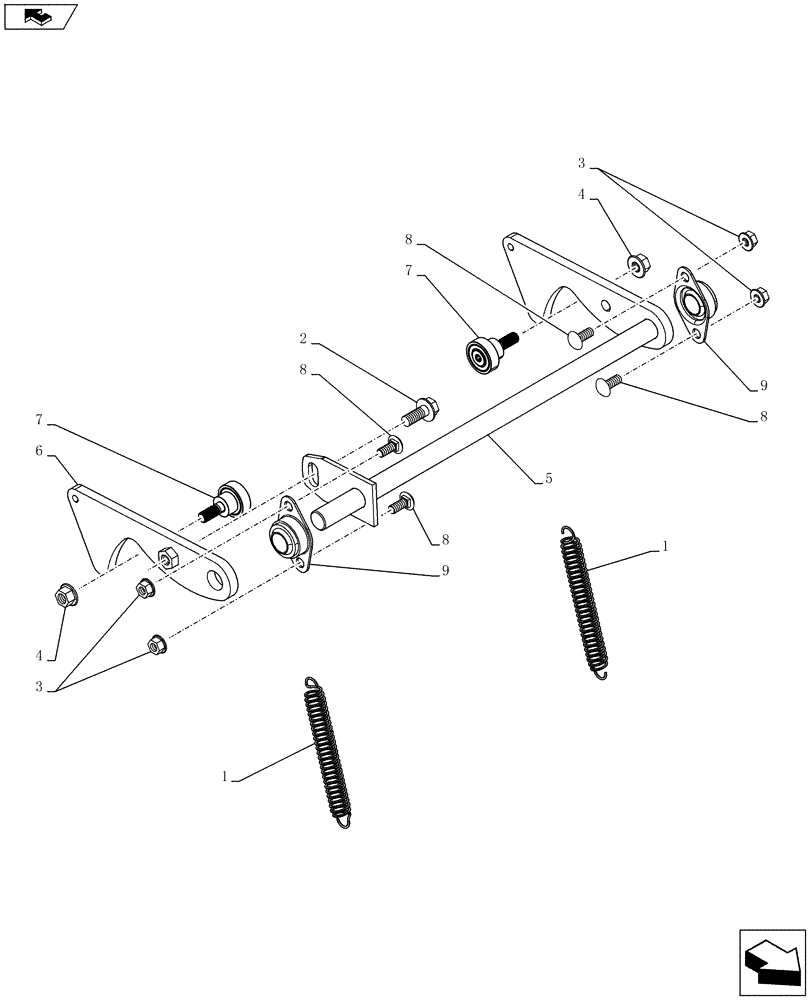

Запчасти Case TV380 (90.112.03[03]) - SERVO PUMP CENTERING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

163826

SPRING,Extension, 0.732” OD x 2.75” L

Extension

2шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

5

84257200

CONTROL SHAFT

Cam, RH Centering

1шт.

6

84282833

PLATE

Cam, RH Centering

1шт.

7

84291861

CAM FOLLOWER

2шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

86567251

FLANGED BEARING,19mm ID

Side Flange Bearing

2шт.
