Запчасти Case TV380 (90.100.01[02]) - HOOD AND COVER 23-JUN-2017 AND NEWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

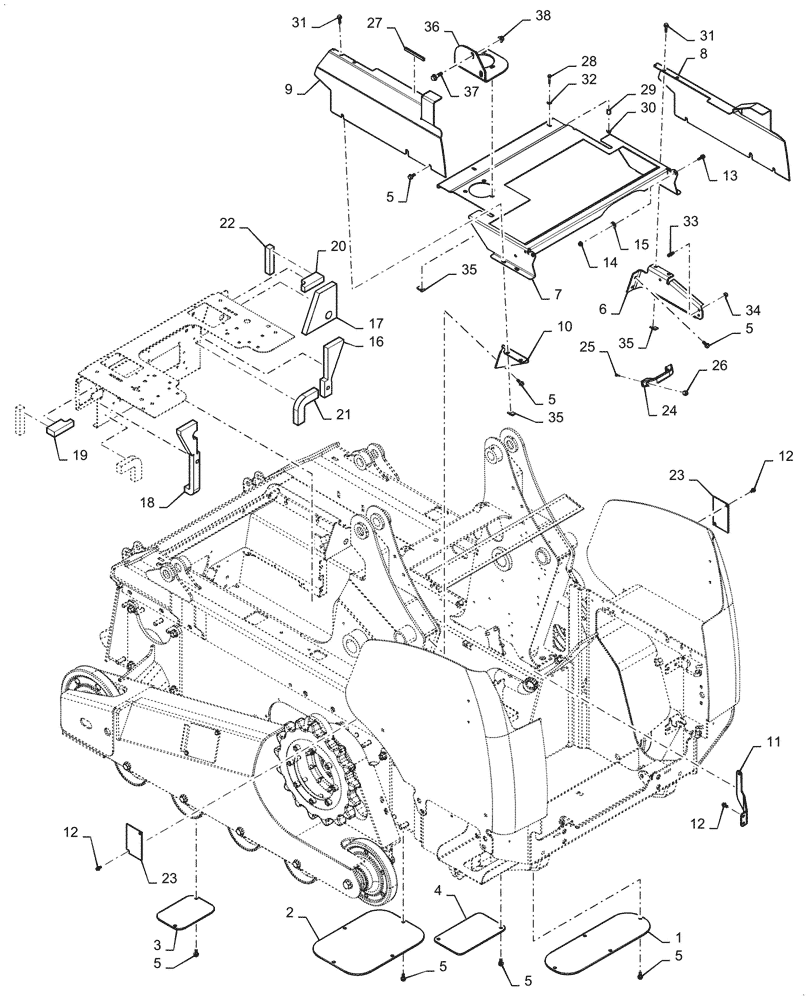

Схема запчастей Case TV380 - (90.100.01[02]) - HOOD AND COVER 23-JUN-2017 AND NEWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
35
18
5
29
36
32
5
24
5
1
5
17
6
8
35
23
7
25
31
28
33
31
5
3
34
14
16
2
35
19
22
11
30
5
23
12
12
27
9
5
37
21
10
12
15
4
26
38
20
13

Артикул

Название

Примечание

Количество

1

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

2

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

3

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

4

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

5

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

20шт.

6

47670334

ANGLE

RH Cover Mounting

1шт.

7

47671574

PANEL

Rear Deck, Gray

1шт.

8

47957083

PANEL

Cover Right, Gray

1шт.

9

47957067

PANEL

Cover Left, Gray

1шт.

10

47670330

ANGLE

LH Cover Mounting

1шт.

11

47498985

ANGLE

Hood Lock Tab, CE Gray

1шт.

12

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

13

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

15

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

16

84372629

FOAM INSULATION

RH Heel Plate

1шт.

17

84287773

FOAM INSULATION

RH Filler

1шт.

18

48013159

FOAM INSULATION

LH Heel Plate

1шт.

19

47875089

FOAM INSULATION

LH Upper Chassis Filler

1шт.

20

47875087

FOAM INSULATION

RH Upper Chassis Filler

1шт.

21

47874957

FOAM INSULATION,177.8mm L x 38.1mm W x 25.4mm Thk

Chassis Filler

1шт.

22

47870227

FOAM INSULATION,130mm L x 25.4mm W x 25.4mm Thk

Chassis Filler

1шт.

23

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

24

406256A1

HANDLE

Handle Rear Hood

1шт.

25

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

26

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

27

87702286

TRIM,Bulk, 1/8" x 30480mm L

Cut to Length, 220mm L

1шт.

28

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

2шт.

29

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

2шт.

30

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

31

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

32

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

33

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

2шт.

34

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

35

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

7шт.

36

47461845

PLATE

Exhaust Stack , Gray

1шт.

37

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

38

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

Выбрано товаров: 38
