Запчасти Case TV380 (10.304.AF[01]) - REMOVED (10) - ENGINE

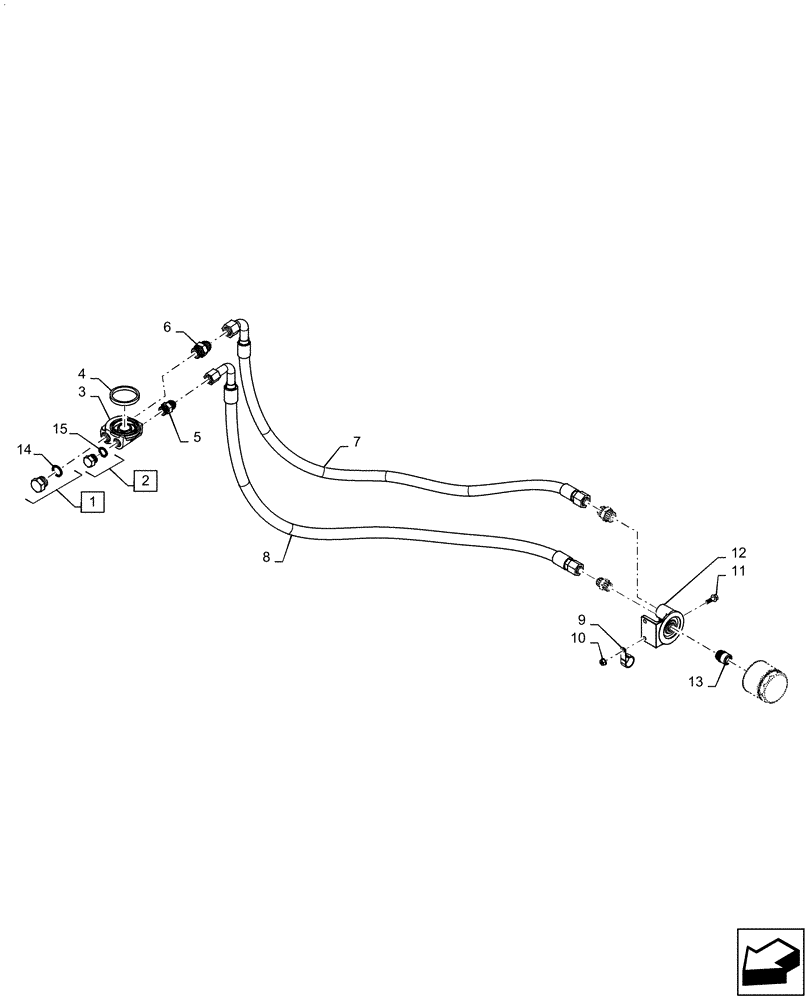

Схема запчастей Case TV380 - (10.304.AF[01]) - REMOVED (10) - ENGINE
13
6
4
14
12
2
3
10
7
9
8
5
1
15
11

Артикул

Название

Примечание

Количество

1

163410

PLUG,1-1/16" - 12 ORB

1шт.

2

86512512

PLUG,7/8" - 14 ORB

1шт.

3

84296854

ADAPTER

Remote Oil Filter

1шт.

4

84303971

SEALING RING,62.5mm ID x 72mm OD x 8mm Thk

1шт.

5

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Also requires (8) hose clamps

2шт.

6

614661

FITTING,1-1/16" - 12 ORB x 3/4" Hose, Beaded

2шт.

7

84269293

HYDRAULIC HOSE,15.88mm ID x 1300mm L

1шт.

8

84305911

HYDRAULIC HOSE,15.88mm ID x 1300mm L

1шт.

9

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

11

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

12

84296830

ADAPTER

Filter Head

1шт.

13

84297794

ADAPTER

Remote Oil Filter

1шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl In 1

1шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl In 2

1шт.

Выбрано товаров: 15
