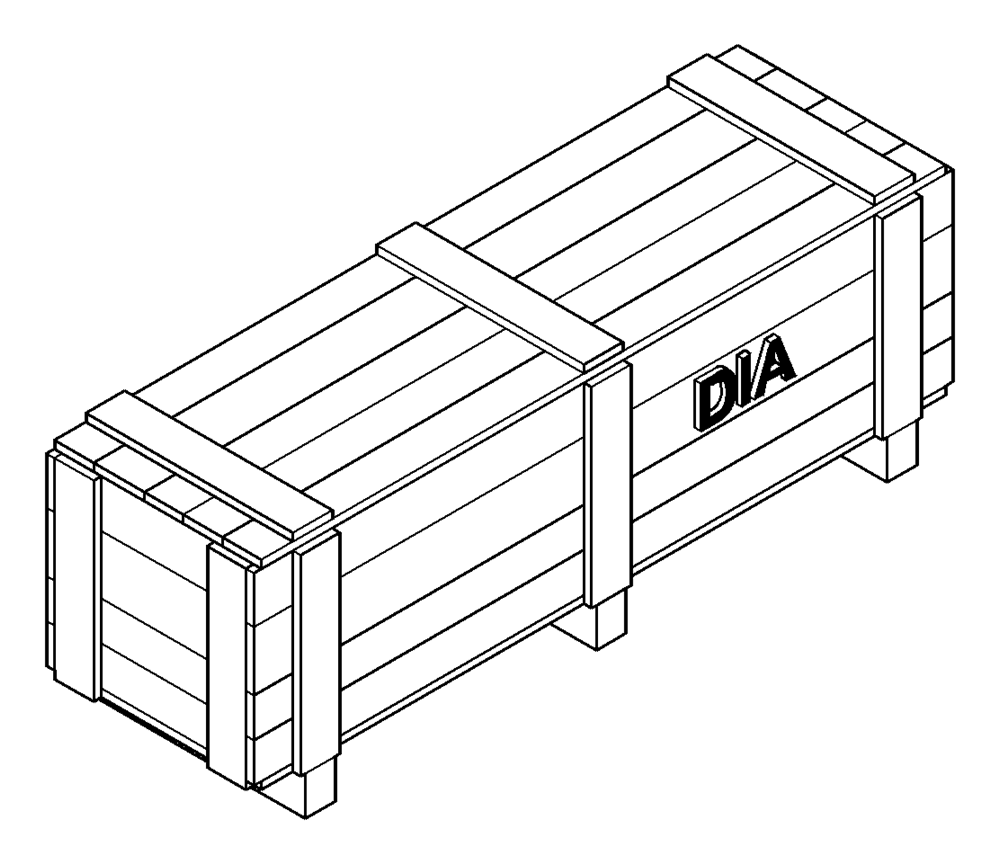

Запчасти Case TV380 (88.100.55[11]) - DIA KIT, ROAD LIGHTS (88) - ACCESSORIES

1

47669535

KIT

Road Lights, Incl 2 - 35

1шт.

2

47667885

INSTRUCTION

Sheet

1шт.

3

86604657

INDICATOR, TURN SIGN

3 Pin

1шт.

4

87634133

SWITCH

Rocker, Hazard Lights

1шт.

5

84263153

SWITCH

Rocker, Loader Lockout

1шт.

6

84306585

BRACKET

RH, Light

1шт.

7

84306583

BRACKET

LH, Light

1шт.

8

87572859

LAMP

RH, Combination

1шт.

9

87572860

LAMP

LH, Combination

1шт.

10

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

11

9821783

FLASHER UNIT

5 Pin

1шт.

12

84423502

WIRE HARNESS

Boom Lamp, Vertical

1шт.

13

84420530

WIRE HARNESS

LH, Boom, Vertical

1шт.

14

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

15

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

18

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

19

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

20

84383285

WIRE HARNESS

Rear Road Jumper

1шт.

21

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

2шт.

22

84522291

CLAMP,19mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

23

131691A1

ROCKER SWITCH

Rocker

1шт.

24

84416164

FOAM INSULATION

RH, Upper Chassis

2шт.

25

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

26

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

28

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

4шт.

29

84419628

BRACKET

Light, Road

2шт.

30

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn/SMV

2шт.

31

87627854

LIGHT ASSY.,12V, 27W, Red

Position

2шт.

32

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

33

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

34

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.
