Запчасти Case TV380 (88.035.03) - DIA KIT, HYDRAULIC COUPLER VERT (SV300,TV380) (88) - ACCESSORIES

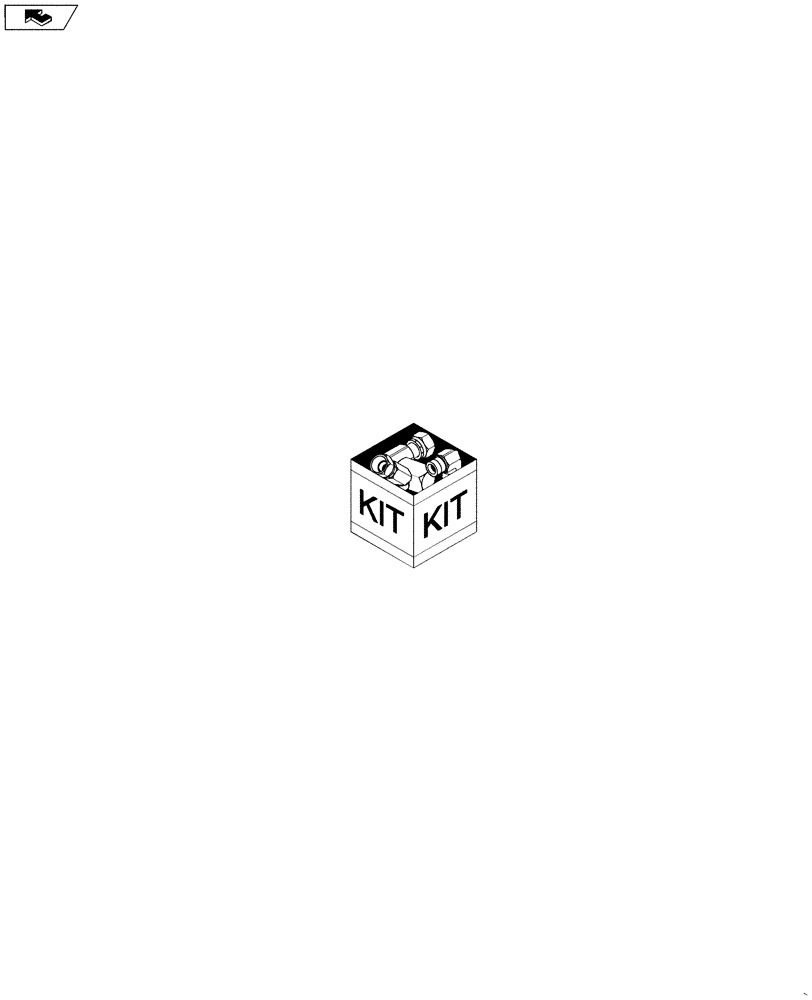

Схема запчастей Case TV380 - (88.035.03) - DIA KIT, HYDRAULIC COUPLER VERT (SV300,TV380) (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84553945

KIT

DIA Kit, Hydraulic Coupler Vert, Incl 2 - 61

1шт.

2

84553946

INSTRUCTION

Sheet, Hydraulic Coupler VERT

1шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

6

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

7

84284644

HOSE ASSY.,6.35mm ID x 1680mm L, SAE 100R17

Hydraulic Coupler

2шт.

8

84396808

HYD TUBE

Hydraulic Tube, Assembly, Hydraulic Coupler

1шт.

9

84351507

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

10

84351545

HYD TUBE

Assembly, Step to Coupler

1шт.

11

84351547

HYD TUBE

Assembly, Step to Coupler

1шт.

12

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

Spacer

1шт.

13

84281694

HOSE ASSY.,6.35mm ID x 1845mm L, SAE 100R17

Hydraulic Coupler

2шт.

14

84350180

HYD TUBE

Coupler

1шт.

15

84350178

HYD TUBE

Assembly, Coupler

1шт.

16

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

4шт.

17

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

18

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

2шт.

19

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

20

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

21

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

22

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

25

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

26

84387739

ROD

Hydraulic Coupler, Position Indicator

2шт.

27

84339845

STEP

Hydraulic Coupler, Power Tan

1шт.

28

84345496

HOSE,6.35mm ID x 368mm L, SAE 100R16

Hydraulic Cylinder

2шт.

29

84345506

HOSE,6.35mm ID x 409mm L, SAE 100R17

Coupler Cylinder

1шт.

30

84345532

HOSE,6.35mm ID x 379mm L, SAE 100R17

Coupler Cylinder

1шт.

31

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

32

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

33

87442337

CYLINDER,Double Acting, 19.05mm Rod, 48mm Stroke

Hydraulic Coupler

2шт.

34

294741A1

CHECK VALVE

1шт.

35

84339847

STEP

Hydraulic Coupler, Gray

1шт.

36

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

2шт.

37

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

38

84281772

HYD TUBE

Assembly, Coupler

1шт.

39

84281774

HYD TUBE

Assembly, Coupler

1шт.

40

84292314

HOSE,12.7mm ID x 460mm L

Hydraulic Coupler, Drain

1шт.

41

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

42

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

25.4mm, J

1шт.

43

87752074

SCREW,HWH, M8 x 1.25 x 16mm

Tapping, M8 X 16

1шт.

44

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

45

84201227

HOSE,12.7mm ID x 615mm L

Hydraulic Coupler, Drain

1шт.

46

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

47

84251346

SWITCH

Rocker, Hydraulic Coupler

1шт.

48

84256406

HYDRAULIC VALVE

Coupler

1шт.

49

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Assembly, Option

1шт.

50

84291016

RIGID TUBE

Assembly, Hydraulic Coupler

1шт.

51

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

52

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

53

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

54

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

37FL X ORB 8-6 Elbow

1шт.

55

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

J, 12.7mm

1шт.

56

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

3шт.

57

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Hydraulic Tee

1шт.

58

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

59

84392556

INSTRUCTION

Sheet, Hydraulic Coupler VERT

1шт.

60

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

61

605025

CLAMP,3/8", Coated, 3/8" Bolt

1шт.

Выбрано товаров: 61
