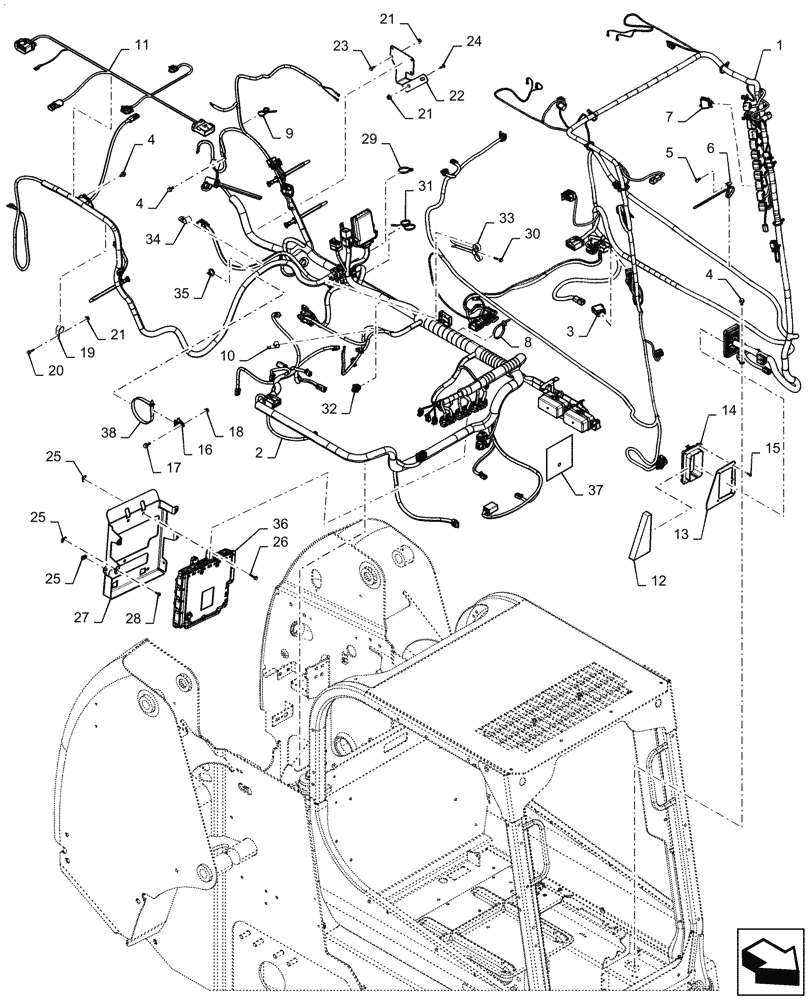

Запчасти Case TV380 (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, W/ EHF (21-MAY-2015 THRU 13-NOV-2016) (55) - ELECTRICAL SYSTEMS

1

47749754

WIRE HARNESS

Cab, EH, Years: -13-JUL-15

1шт.

1

47813025

WIRE HARNESS

Cab, EH, Start Year: 14-JUL-15

1шт.

2

47749751

WIRE HARNESS

Chassis, EH, Years: -13-JUL-15

1шт.

2

47813042

WIRE HARNESS

Chassis, EH, Start Year: 14-JUL-15

1шт.

3

84251343

SWITCH

Rocker, Drive Pattern

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

5

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

6

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

7

84392527

SWITCH

Rocker, Aux Electrical

1шт.

8

30007000

CABLE TIE,.350" x 20.9"

2шт.

9

82013031

CABLE TIE,193mm L

1шт.

10

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

11

47818404

WIRE HARNESS

Chassis, RH Tower

1шт.

12

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

13

47825472

PLATE

Bulkhead Adapter, Gray

1шт.

14

87718301

WIRE CONNECTOR,Flange

1шт.

15

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

16

84360210

BASE

Tie

1шт.

17

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

19

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

21

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

22

47832750

BRACKET

GCU Fuse Mounting

1шт.

23

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

24

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

25

86625073

SPRING NUT,M6 x 1

10шт.

26

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

27

47860657

BRACKET

UCM Support, Gray

1шт.

28

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

30

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

2шт.

31

82012869

CABLE TIE,300mm L, Nylon, Black

1шт.

32

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.

33

84386243

CLAMP,489mm L

1шт.

34

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

35

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

36

84267444

ECU

SSL

1шт.

37

47864567

DECAL

Fuse Box Layout, EH

1шт.

38

84266050

CABLE TIE,384mm L, Polyamide

1шт.
