Запчасти Case TV380 (55.101.01) - ENGINE ELECTRICAL (SV300,TV380) (55) - ELECTRICAL SYSTEMS

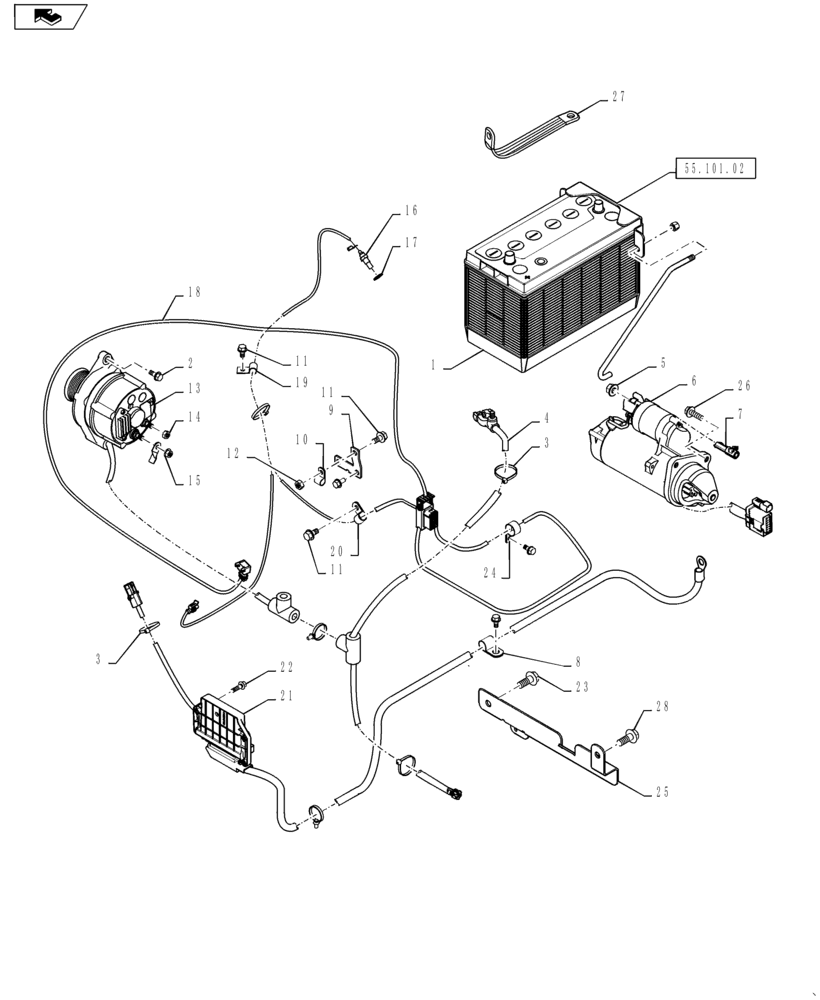

Схема запчастей Case TV380 - (55.101.01) - ENGINE ELECTRICAL (SV300,TV380) (55) - ELECTRICAL SYSTEMS
22
9
28
23
6
25
1
21
19
11
18
13
24
10
55.101.02
8
3
5
11
14
3
7
16
11
2
4
12
27
20
home
15
17
26

Артикул

Название

Примечание

Количество

1

B31925SW

WET BATTERY

12V, 925 CCA

1шт.

1

CC31925SW

WET BATTERY

12V, 925 CCA

1шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

Nylon Tie, 7-8in

4шт.

4

84298935

POS BATTERY CABLE

, Years: -30-APR-13

1шт.

4

84605006

POS BATTERY CABLE

, Start Year: 01-MAY-13

1шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

6

47375306

STARTER MOTOR,12V, 3.2kW

, Years: -27-FEB-15

1шт.

6

47375306R

REMAN-STARTER,12V, 3.2kW

1шт.

6

47375306C

CORE-STARTER,12V, 3.2kW

Return Number

1шт.

6

504357110

STARTER MOTOR,12V, 3.2kW

, Years: 28-FEB-15-20-JUL-15

1шт.

6

504357110R

REMAN-STARTER

12V, 3.2kW

1шт.

6

504357110C

CORE-STARTER,12V, 3.2kW

Return Number

1шт.

6

5801577138

, Start Year: 21-JUL-15

STARTER MOTOR,12V, 3.2kW

1шт.

6

5801577138R

REMAN-STARTER

Reman Starter

1шт.

6

5801577138C

CORE-STARTER

Return Number

1шт.

7

87053083

HARNESS

Starter, Jumper

1шт.

8

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

9

87591549

BRACKET

Grid Heater

1шт.

10

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

12

9706690

NUT,M8 x 1.25, Cl 8

1шт.

13

84254290

ALTERNATOR,12V, 120A, W/ Pulley

1шт.

13

84254290R

REMAN-ALTERNATOR

1шт.

13

84254290C

CORE-ALTERNATOR

Return Number

1шт.

14

86508813

NUT,M5, Cl 8

1шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

, Years: -30-APR-13

1шт.

15

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

, Start Year: 01-MAY-13

1шт.

16

87688409

TEMPERATURE SENDER,M10 x 1.0

Water

1шт.

17

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

18

84375316

WIRE HARNESS

Engine, F5C

1шт.

19

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

20

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

84420643

CONTROLLER

F5C, EGR

1шт.

22

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

3шт.

23

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

24

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

25

84273652

BRACKET

Battery Cable

1шт.

26

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

27

D140369

GROUND STRAP,260mm L

Strap

1шт.

28

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

Flange, M12 X 20 (Not Shown)

1шт.

Выбрано товаров: 41
