Запчасти Case TV380 (35.734.AH[03]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (SR250,SV300,TR320,TV380) (35) - HYDRAULIC SYSTEMS

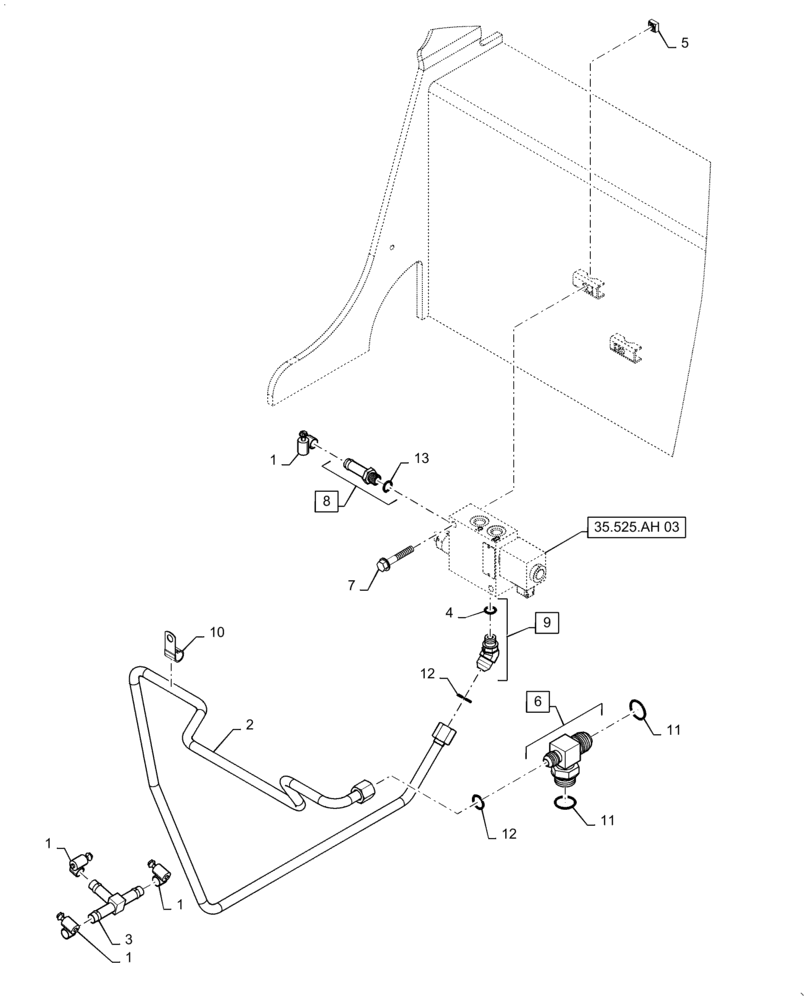

Схема запчастей Case TV380 - (35.734.AH[03]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (SR250,SV300,TR320,TV380) (35) - HYDRAULIC SYSTEMS
13
9
7
8
1
1
3
5
10
11
1
11
6
2
1
12
12
4
35.525.ah 03

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

2

47539004

TUBE

Hydraulic Coupler

1шт.

3

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

6

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

Incl 11

1шт.

7

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

Incl 13

1шт.

9

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 4

1шт.

10

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 13
