Запчасти Case TV380 (35.724.020) - W/O SELF-LEVELING HYDRAULIC CONTROL, EH CONTROLS (35) - HYDRAULIC SYSTEMS

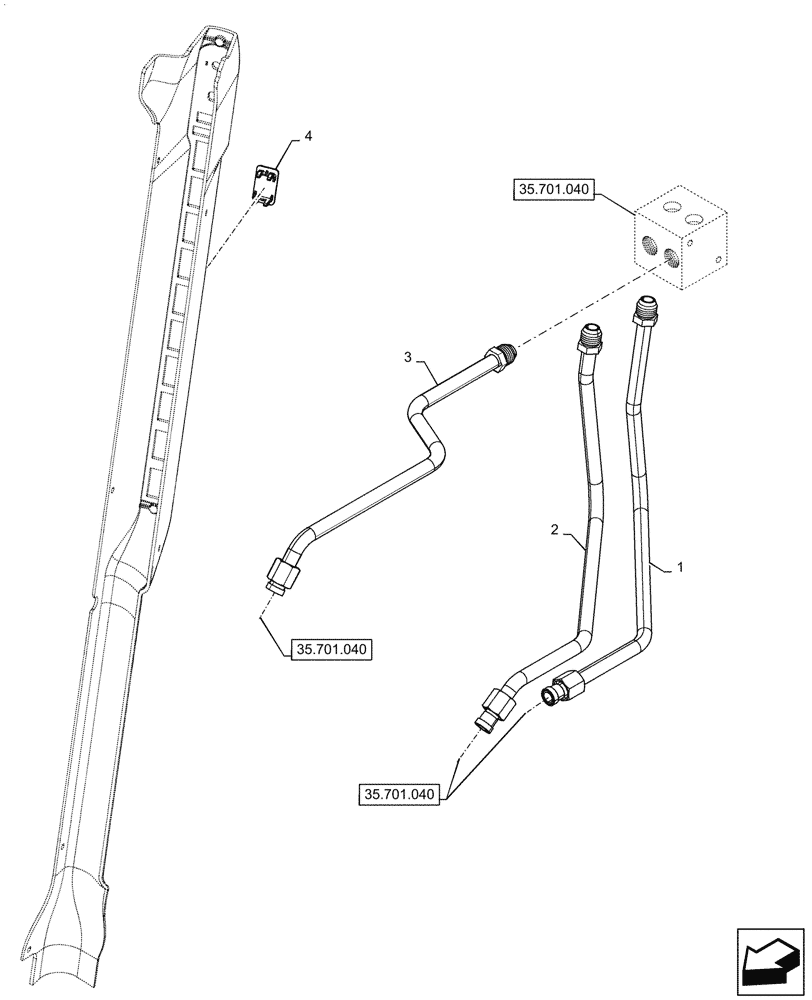

Схема запчастей Case TV380 - (35.724.020) - W/O SELF-LEVELING HYDRAULIC CONTROL, EH CONTROLS (35) - HYDRAULIC SYSTEMS
35.701.040
3
2
4
1
35.701.040
35.701.040

Артикул

Название

Примечание

Количество

1

47844695

HYD TUBE

Bucket, Loader Valve to Right Arm

1шт.

2

47893491

HYD TUBE

Bucket, Loader Valve to Right Arm

1шт.

3

84186149

RIGID TUBE

Lower, Loader Valve to Manifold

1шт.

4

126844A1

PLUG,1.427” x .62” , Plastic

Self Level, Switch Hole

1шт.

Выбрано товаров: 4
