(35.100.010) - HYDRAULIC SUPPLY LINES PLUMBING

Запчасти Case TV380 (35.100.010) - HYDRAULIC SUPPLY LINES PLUMBING (35) - HYDRAULIC SYSTEMS

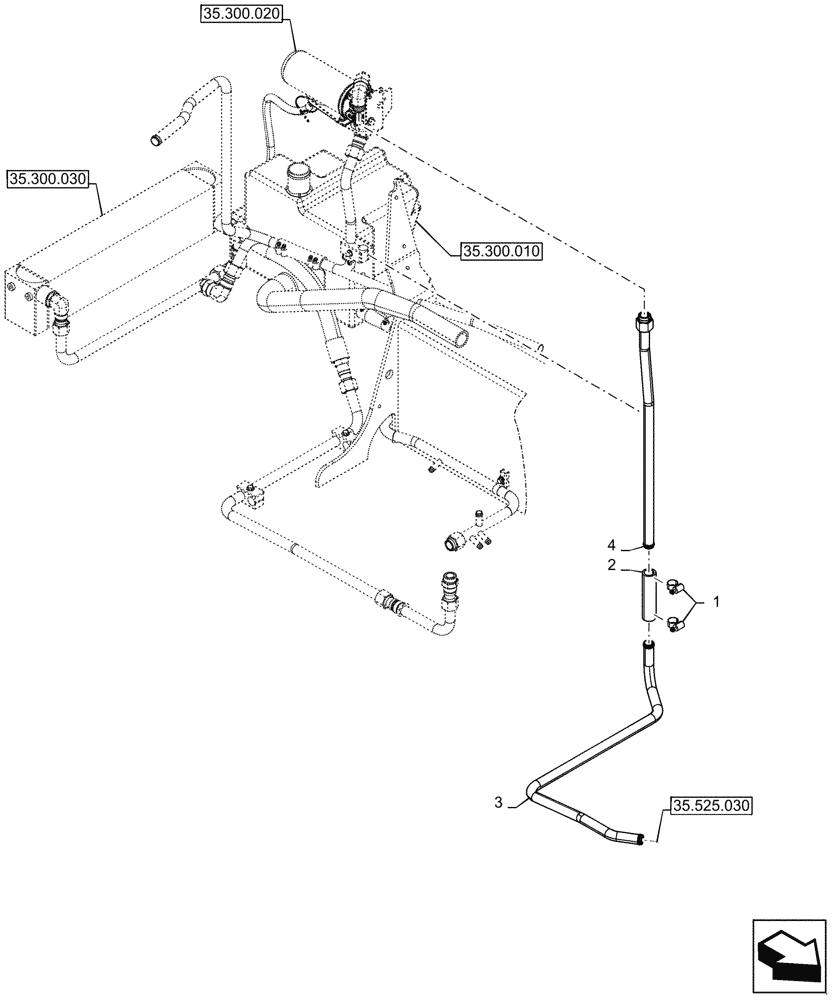

Схема запчастей Case TV380 - (35.100.010) - HYDRAULIC SUPPLY LINES PLUMBING (35) - HYDRAULIC SYSTEMS
35.300.020
4
3
2
1
35.300.030
35.525.030
35.300.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

2

47641948

HOSE,25mm ID x 143mm L, SAE 100R4

1шт.

3

47884152

HYD TUBE

25.4mm OD, Tandem Supply

1шт.

4

47730815

TUBE

25.4mm OD, Hydraulic Filter to Pump

1шт.
