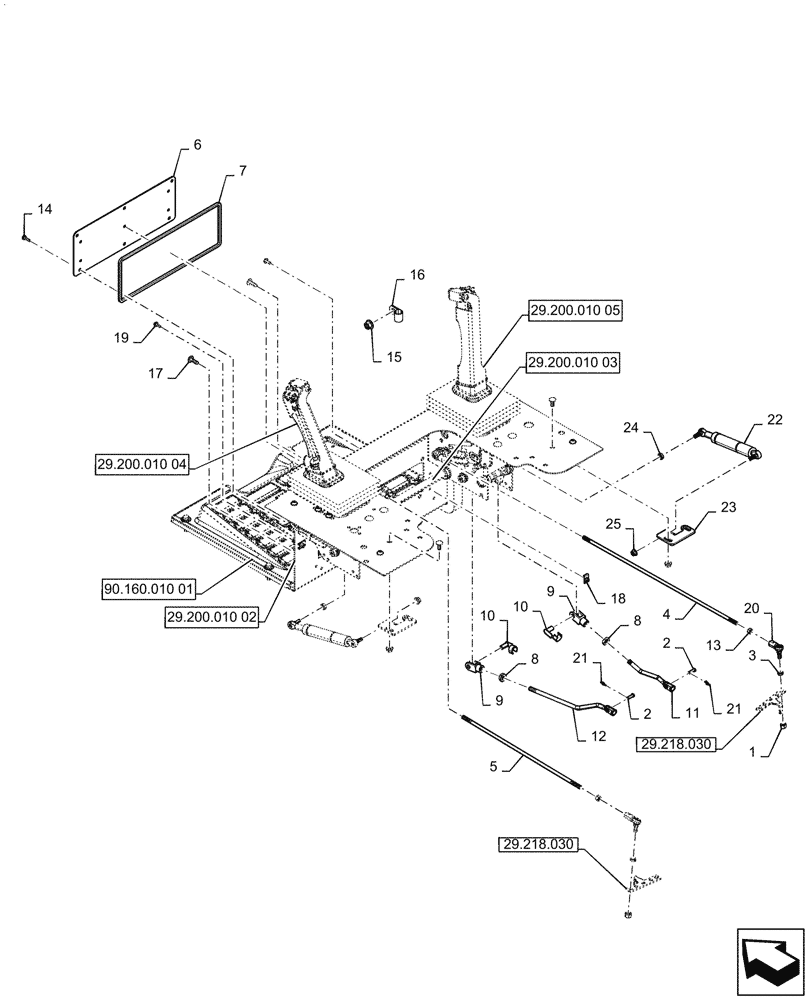

Запчасти Case TV380 (29.200.010[01]) - HAND CONTROLS ASSY (29) - HYDROSTATIC DRIVE

1

80855

NUT,Hex, 3/8" - 24

2шт.

2

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

4

47645575

ROD,9.53mm - 24 x 756mm L

1шт.

5

47645576

ROD,3/8" - 24 x 470mm L

1шт.

6

47921024

PLATE,140mm W x 378mm L x 2.67mm Thk

Heel Cover, Gray

1шт.

7

47874049

SEALING STRIP,Bulk, Vinyl Foam Tape, 6.4mm Thk

Cut to Length, 1015mm L

1шт.

8

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

9

84299261

CLEVIS,10mm ID x 20mm L

2шт.

10

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

11

84300037

ROD,10mm OD x 143.2mm L

Loader Valve Bucket

1шт.

12

84300039

ROD,10mm OD x 283.7mm L

Loader Valve Boom

1шт.

13

86509310

NUT,3/8" - 24, Gr 5

2шт.

14

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

6шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

16

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

17

86620930

FASTENER,Push-In, 1.10" L, Nylon

2шт.

18

86625073

SPRING NUT,M6 x 1

4шт.

19

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

20

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

21

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

22

84310789

DAMPER,15mm Rod, 61mm Stroke

Self Centering

2шт.

23

84338477

BRACKET

Damper Mounting, Gray

2шт.

24

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

25

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.
