Запчасти Case TV380 (90.151.030) - REAR VIEW MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

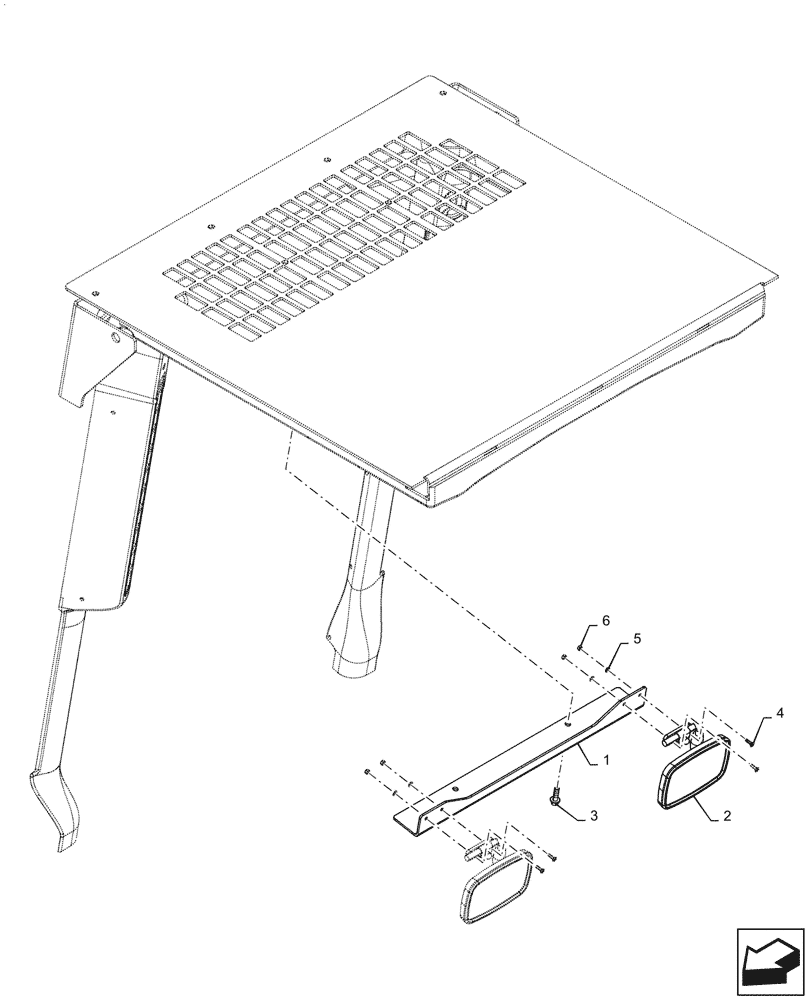

Схема запчастей Case TV380 - (90.151.030) - REAR VIEW MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
6
3
2
5
4

Артикул

Название

Примечание

Количество

1

47958728

BRACKET

Mirror Mounting

1шт.

2

3962022

MIRROR,153mm L x 103mm W

2шт.

3

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

4

9844205

SCREW,Phillips Drive, Oval HD, M4 x 14mm, Cl 4.8

4шт.

5

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

6

152799

NUT,Prev Torque, Hex, M4 x 0.7, Cl 5

4шт.

Выбрано товаров: 6
