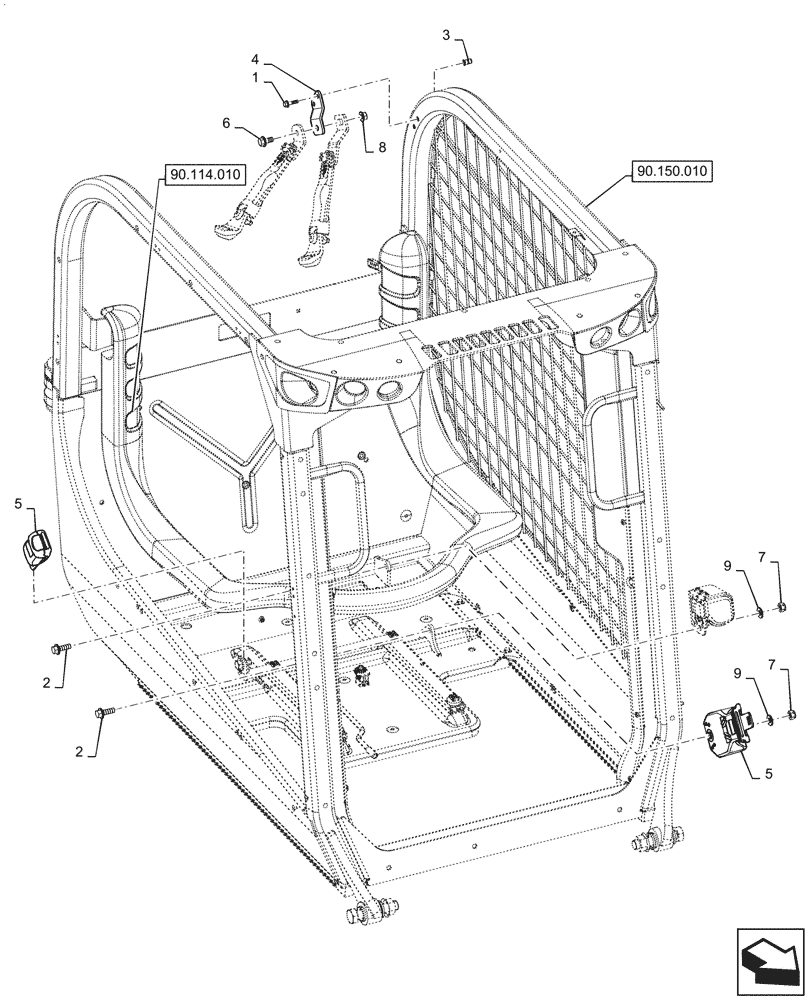

Запчасти Case TV380 (90.151.020[02]) - 3 POINT SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

3

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

4

84291791

BRACKET

C-Belt, 3 Point Retractable

1шт.

5

47444752

SEAT BELT

Case, 3 Point

1шт.

6

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

7

86512554

NUT,M10 x 1.5, Cl 10

2шт.

8

86619802

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.
