Запчасти Case TV380 (90.151.020[01]) - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

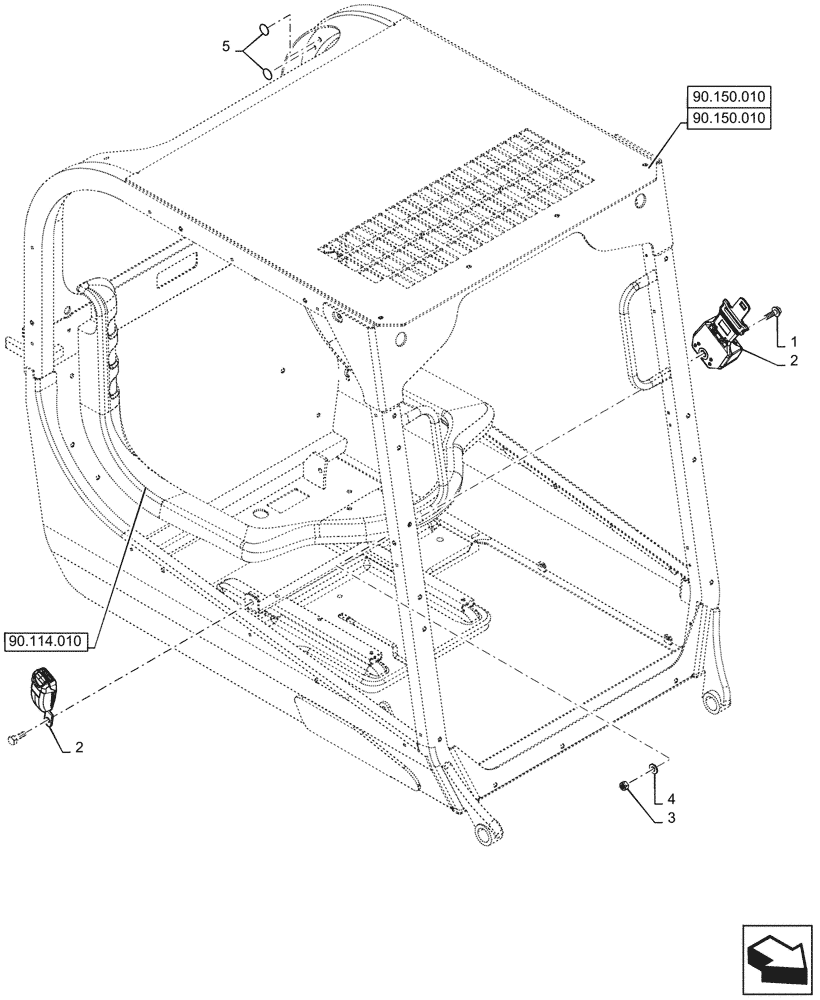

Схема запчастей Case TV380 - (90.151.020[01]) - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.010
1
3
5
2
4
2
90.150.010
90.150.010

Артикул

Название

Примечание

Количество

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

2

84174264

SEAT BELT,51mm W x 1447mm L

Lap

1шт.

3

86512554

NUT,M10 x 1.5, Cl 10

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

5

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

Plug Holes Used By Shoulder Belt

1шт.

Выбрано товаров: 6
