Запчасти Case TV380 (90.150.020) - CAB SEALING STRIP (90) - PLATFORM, CAB, BODYWORK AND DECALS

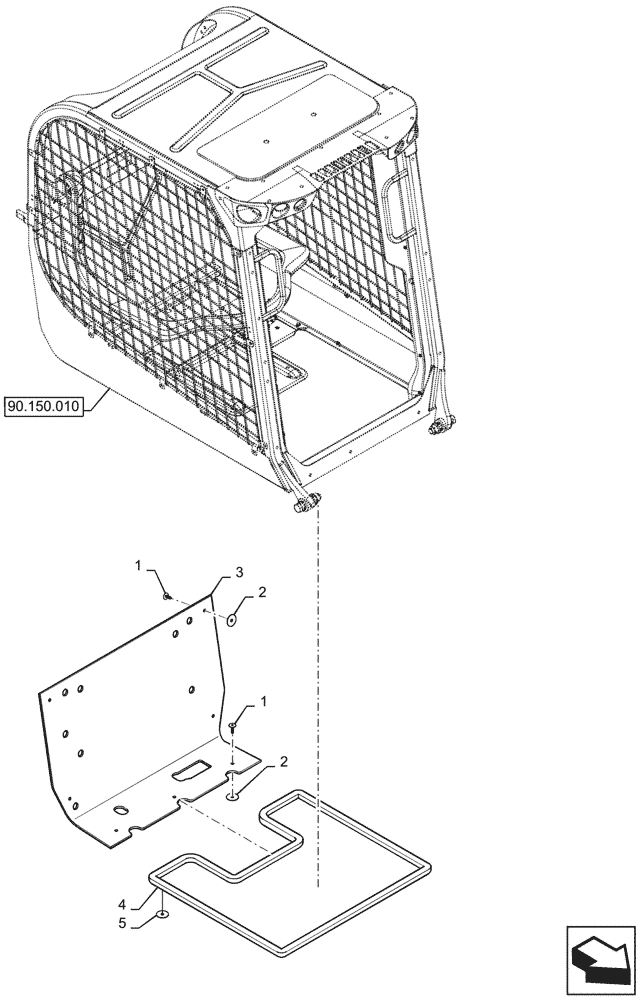

Схема запчастей Case TV380 - (90.150.020) - CAB SEALING STRIP (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
5
4
2
90.150.010
1
2

Артикул

Название

Примечание

Количество

1

84318534

FASTENER,22.9mm L, Nylon, Push-In, Fiat Gray

7шт.

2

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

Flat

7шт.

3

84499138

FOAM INSULATION

884mm L, Firewall

1шт.

4

47488876

SEAL,Bulk 30.48 m

Lower Cab, Cut to Length, 3326mm L

1шт.

5

84311384

FOAM INSULATION

Dump Valve

1шт.

Выбрано товаров: 5
