Запчасти Case TV380 (90.120.010[01]) - FIXED SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

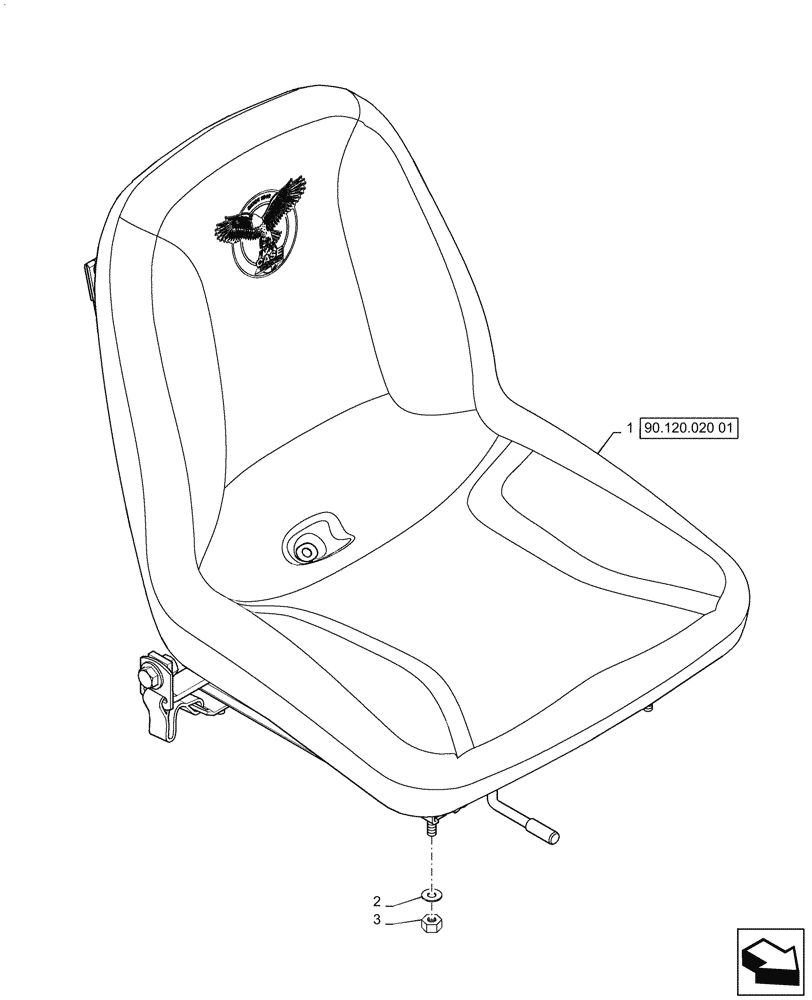

Схема запчастей Case TV380 - (90.120.010[01]) - FIXED SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.020 01
2
1
3

Артикул

Название

Примечание

Количество

1

47920918

DRIVER SEAT

Non-Suspension, Case Logo

1шт.

2

86629544

NUT,5/16” – 18, GR B

4шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 3
