Запчасти Case TV380 (90.105.010[01]) - INSULATION & SOUNDPROOFING (90) - PLATFORM, CAB, BODYWORK AND DECALS

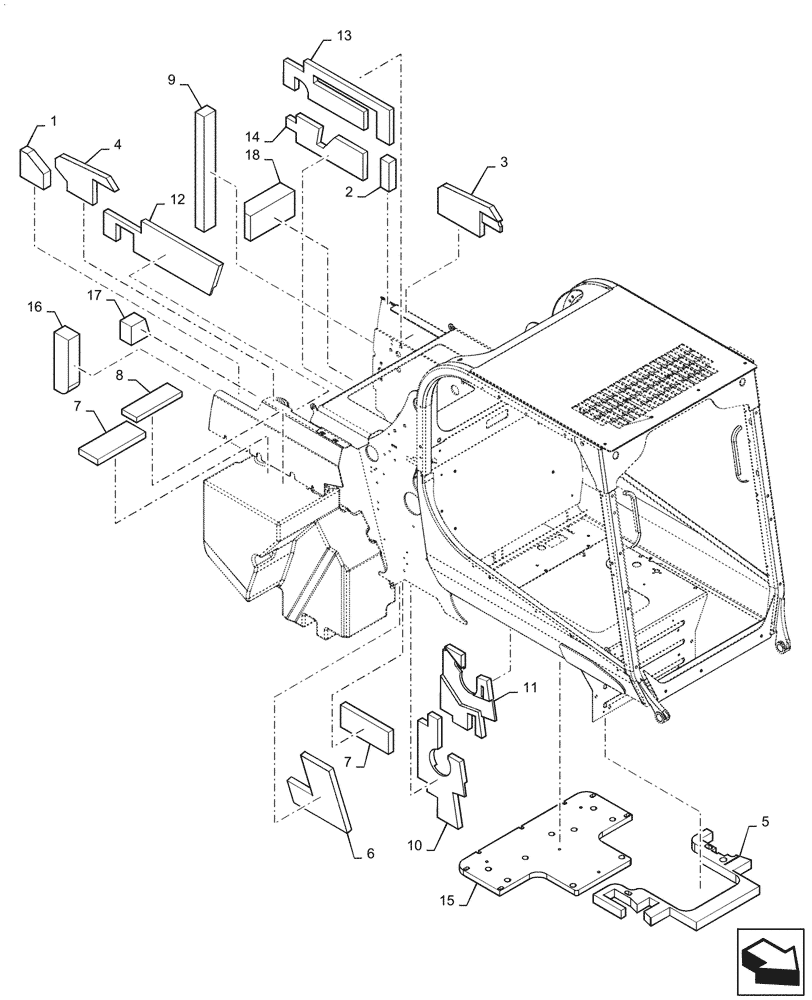

Схема запчастей Case TV380 - (90.105.010[01]) - INSULATION & SOUNDPROOFING (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
1
11
12
5
10
3
18
14
7
6
2
9
16
4
8
13
15
7

Артикул

Название

Примечание

Количество

1

47911464

FOAM INSULATION

RH, Chassis, Formed

1шт.

2

47911465

FOAM INSULATION,145mm L x 50mm W x 40.5mm Thk

LH, Chassis

1шт.

3

47925416

FOAM INSULATION

Rear Hood, LH, Formed

1шт.

4

47994591

FOAM INSULATION

Rear Hood, RH, Formed

1шт.

5

47856115

FOAM INSULATION

Heel Plate, Formed

1шт.

6

84482003

FOAM INSULATION

Fuel Tank, Formed

1шт.

7

84481987

FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk

Fuel Tank

2шт.

8

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

LH, Fan

1шт.

9

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

RH, Fan

1шт.

10

47840569

FOAM INSULATION

RH, Tower, Formed

1шт.

11

47933052

FOAM INSULATION

LH, Tower Mid, Formed

1шт.

12

47912093

FOAM INSULATION

RH, Tower, Formed

1шт.

13

47912094

FOAM INSULATION

LH, Tower, Formed

1шт.

14

48042466

FOAM INSULATION

RH, Tower, Formed

1шт.

15

84372040

FOAM

Seat Pan, Formed

1шт.

16

48084216

Fuel Tank

FOAM INSULATION

1шт.

17

48085860

Fuel Tank

FOAM INSULATION

1шт.

18

47612521

FOAM INSULATION,260mm L x 127mm W x 85mm Thk

LH, Tower

1шт.

Выбрано товаров: 18
