Запчасти Case TV380 (10.216.030) - FUEL FILTER / WATER SEPARATOR (10) - ENGINE

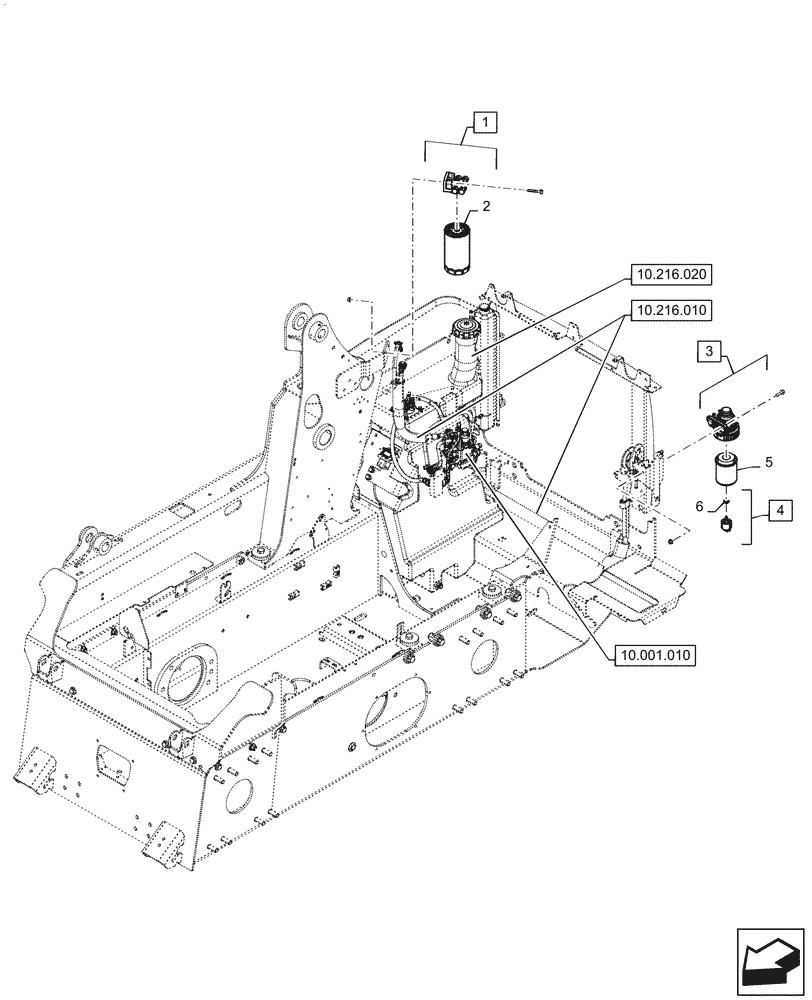

Схема запчастей Case TV380 - (10.216.030) - FUEL FILTER / WATER SEPARATOR (10) - ENGINE
10.216.010
1
5
2
3
6
4
10.216.020
10.001.010

Артикул

Название

Примечание

Количество

1

47925289

FUEL FILTER

Assembly, Chassis Mounted, Incl 2

1шт.

2

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

Fuel Filter

1шт.

3

47542915

FUEL FILTER

Prime Pump Assy, Rear Door Mounted, Incl 4 - 5

1шт.

4

87612475

SENSOR

WIF, Incl 6

1шт.

Connects to Main Chassis Harness

1шт.

5

87803443

ELEMENT,79.2mm OD x 109.2mm L, 30 Micron

Fuel Filter & Water Separator

1шт.

6

87612469

SEALING WASHER

O-ring, Incl in 4

1шт.

Выбрано товаров: 7
