Запчасти Case TV380 (88.100.55[06]) - DIA KIT, MULTIFUNCTION ELECTRICAL (88) - ACCESSORIES

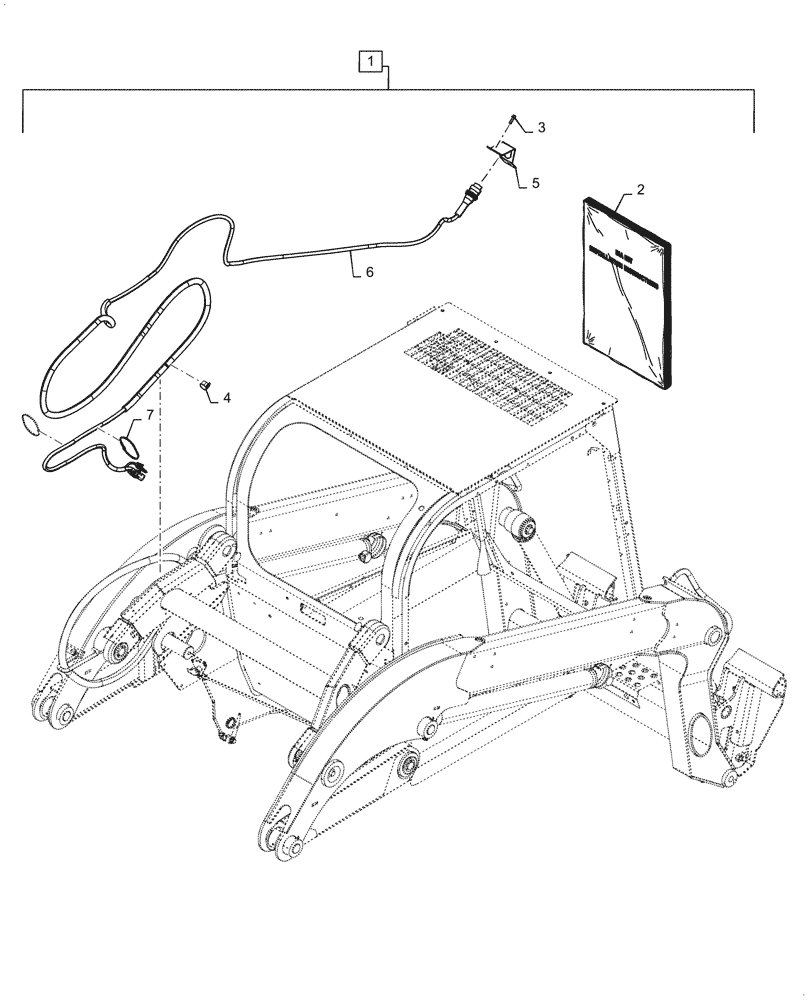

Схема запчастей Case TV380 - (88.100.55[06]) - DIA KIT, MULTIFUNCTION ELECTRICAL (88) - ACCESSORIES
3
4
1
2
7
5
6

Артикул

Название

Примечание

Количество

1

47707206

KIT

Multifunction Electrical, EH and Mechanical, Vertical, Incl 2 - 7

1шт.

2

47707215

INSTRUCTION

Sheet

1шт.

3

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

4

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

5

84293533

BRACKET, SUPPORTING

Front Aux Electrical

1шт.

6

47656836

WIRE HARNESS

Aux Electrical, Vertical Lift

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

Выбрано товаров: 7
