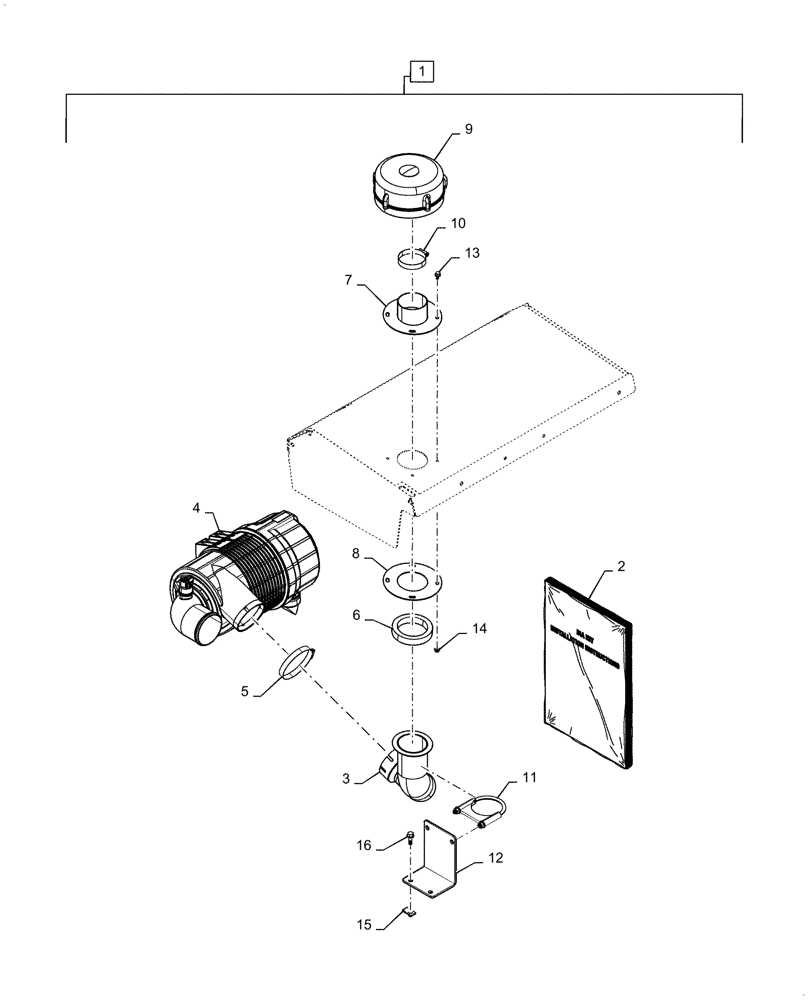

Запчасти Case TV380 (88.100.10[01]) - KIT, PRE-CLEANER (88) - ACCESSORIES

1

47721330

KIT

Pre-cleaner, Vert. Incl 2 - 16

1шт.

2

47721322

INSTRUCTION

Sheet

1шт.

3

47848006

TUBE

Extension, Pre-Cleaner to Air Cleaner

1шт.

4

47718016

AIR PRE-CLEANER ASSY

1шт.

5

79083851

HOSE CLAMP,90mm - 110mm

1шт.

6

47801607

FOAM

Pre-Cleaner

1шт.

7

47801254

EXTENSION

Pre-Cleaner

1шт.

8

47801232

MOUNTING PLATE

Ring

1шт.

9

47694926

AIR PRE-CLEANER ASSY

1шт.

10

79083848

HOSE CLAMP,60mm - 80mm, Worm Gear

Worm Gear

1шт.

11

47846973

CLAMP,80mm ID

Muffler

1шт.

12

47847101

BRACKET

Pre-Cleaner Mounting

1шт.

13

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

15

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
