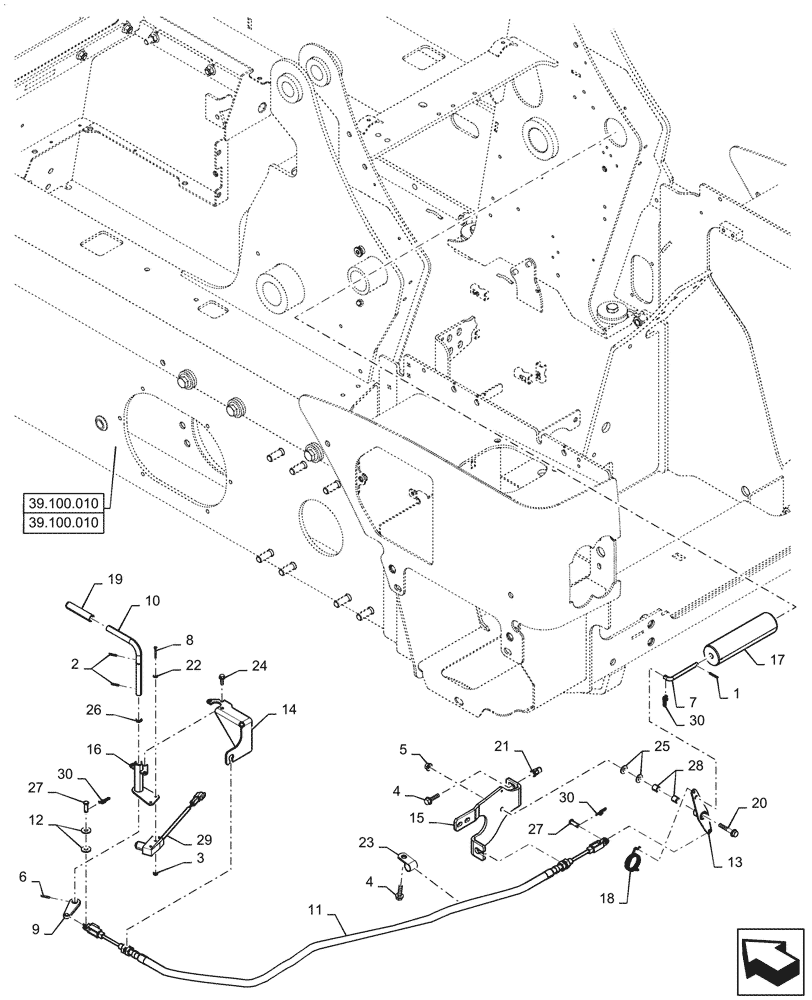

Запчасти Case TV380 (82.100.010) - BOOM LOCKING DEVICE (82) - FRONT LOADER & BUCKET

1

87455

SLOTTED PIN,1/8" OD x 1" OAL

1шт.

2

87663

LOCK PIN,1/8" OD x 3/4" L, Slotted Spring

2шт.

3

280859

NUT,Keps, #6-32

2шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

3шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

14162070

LOCK PIN,M3 x 22, Slotted

1шт.

7

47570252

LINK,7.94mm OD x 83.5mm L

1шт.

8

47570937

SCREW,Cross Pan HD, #6-32 x 1-1/8"

2шт.

9

47618636

LEVER

Handle

1шт.

10

47618649

HANDLE

Locking

1шт.

11

47684430

CABLE,1827mm L

Boom Lock

1шт.

12

47699443

WASHER,8.74mm ID x 22.2mm OD x 2mm Thk, Teflon

2шт.

13

47705300

BELLCRANK

Upper Boom Lock

1шт.

14

47764167

BRACKET

Cable Support

1шт.

15

47765462

BRACKET

Pivot

1шт.

16

47937271

TUBE

Handle Pivot

1шт.

17

84325375

PIN,50.8mm OD x 192mm L

Boom Lock

1шт.

18

84331883

TORSION SPRING,Torsion, 38.1mm OD x 12.19mm L

3.25 Coils

1шт.

19

84331884

GRIP,76mm L

Vinyl Sleeve

1шт.

20

84401335

BOLT,Hex, M8 x 45mm, Cl 10.9

1шт.

21

84531322

RIVET,12.7mm OD x 21.5mm L

Nut

2шт.

22

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

23

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

24

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

3шт.

25

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

26

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

27

86629892

CLEVIS PIN,5/16" OD x 0.940" L

2шт.

28

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

29

87051110

DOOR SWITCH

Seat Bar

1шт.

30

417860A1

COTTER PIN

Spring, 33mm L

3шт.
